Sony TA-AN1000 360 Spatial Sound Mapping 8K 7.2 ch AV Amplifier

SPECIAL OFFERS & PROMOTIONS
1yr warranty
IN STOCK
Order before 1PM for Next-Day Delivery*

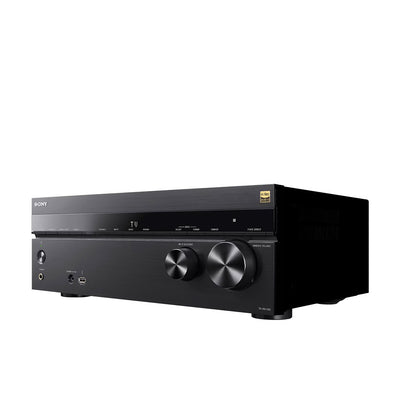

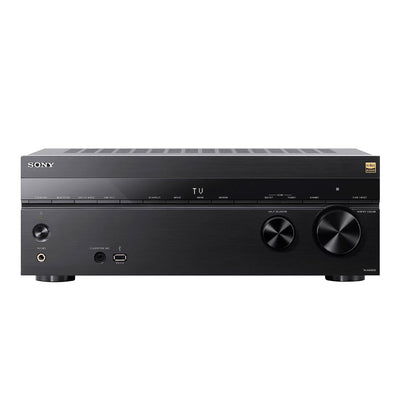

Sony TA-AN1000 360 Spatial Sound Mapping 8K 7.2 ch AV Amplifier

Featuring 360 Spatial Sound Mapping technology1, the AN1000 gives you an immersive surround experience that is enabled by multiple phantom speakers.2 With D.C.A.C. IX Auto Calibration, it's always optimised for the best sound setting for your room, resulting in a breathtaking cinematic sound experience at home. And thanks to DTS:X and Dolby Atmos support, the AN1000 delivers mighty, cinematic surround, right alongside stunning high resolution music, streaming and smart integration.

360 Spatial Sound that adapts to your environment - D.C.A.C. IX ingeniously measures the height and position of each speaker with a calibration microphone

The AN1000 features 360 Spatial Sound Mapping technology to draw you into your entertainment like never before. Based on the positional information measured by D.C.A.C. IX, multiple phantom speakers2 are generated all around you, for an entirely new sound sensation, so you can experience all the drama of Dolby Atmos® and DTS:X® alongside every breath, step and word like you're right inside the film.

Seamless auto calibration with your favourite speakers

The supplied calibration microphone and latest-generation D.C.A.C. IX auto calibration allows the AN1000 to measure the 3D position of all your speakers. Compensate for challenging speaker placement, delay or phase shift, and enjoy authentic cinematic experiences with advanced digital signal processing, including the stunning immersive 360 Spatial Sound.

Find your audio sweet spot

The flexible speaker solution ‘relocates’ sound to simulate the optimal position and angle for the best audio experience, working around any physical space restrictions

Experience full surround sound - Discover Phantom Surround Back

The Phantom Surround Back speaker setting replicates the immersive sound of physical surround back speakers, enabling you to enjoy a 7 channel surround sound experience with only a 5 channel speaker setup

High quality visuals

See vivid scenes full of real-life colour and depth. All of the original picture quality is preserved when played through the AN1000, so you’ll be completely immersed in movies. Gaming is also much more thrilling and realistic, with support for the latest formats, such as Variable Refresh Rate (VRR) and Auto Low Latency Mode (ALLM) in HDMI 2.1.

High quality sound

Enjoy music the way the artists truly intended with High-Resolution Audio for crystal clear precision. Or discover a new way of listening with
360 Reality Audio5 for a truly immersive live concert or studio session experience. With the AN1000, your music comes to life like never before. It also supports DSD (Direct Stream Digital) native playback, with no conversion involved so DSD content can be fully enjoyed without losing any of the original quality.

Best with Sony TVs

When connected to a BRAVIA TV with Acoustic Center Sync3 4, both the audio system and the TV become the center speaker in your home cinema system. With Acoustic Center Sync, you’ll hear dialogue from the screen. Action and sound are precisely aligned so your viewing becomes much more immersive

 Specification
Amplifier
Number of amp. channels 7ch
Front 165W(6ohms, 1kHz, 1ch driven THD 0.9%)
Speaker Impedance 6ohms-16ohms
2ch Stereo Yes
Direct Yes
Auto Format Decoding Yes
Multi Stereo Yes
Audio Enhancer Yes
Headphone 2ch Yes
Video Features
3D over HDMI Yes
HDMI Video Output capability 8K, 4K, 1080p, 1080/24p, Deep Color (up to 36 bit), Triluminous Color (xvYCC)
4K 60p 4:4:4 Support Yes
A/V SYNC Yes(Variable)
Audio Return Channel Yes
BRAVIA® SYNC™ (CEC Control) Yes (System Audio Control, System Power Off, RC Pass Through, Language Follow, One-Touch Play)
Standby Through Yes
HDR Yes(HDR10, Hybrid Log Gamma, Dolby Vision)
Audio Features
DSD Native Playback Yes
DSEE HX -
Pure Direct Yes
Sound Optimizer -
Center Speaker Lift Up Yes
Digital Legato Linear -
In-Ceiling Speaker Mode Yes
PHONO VOLUME OFFSET -
TV VOLUME OFFSET -
Tuner Features
FM/AM No/No
Preset Channel (FM/AM) -
RDS -

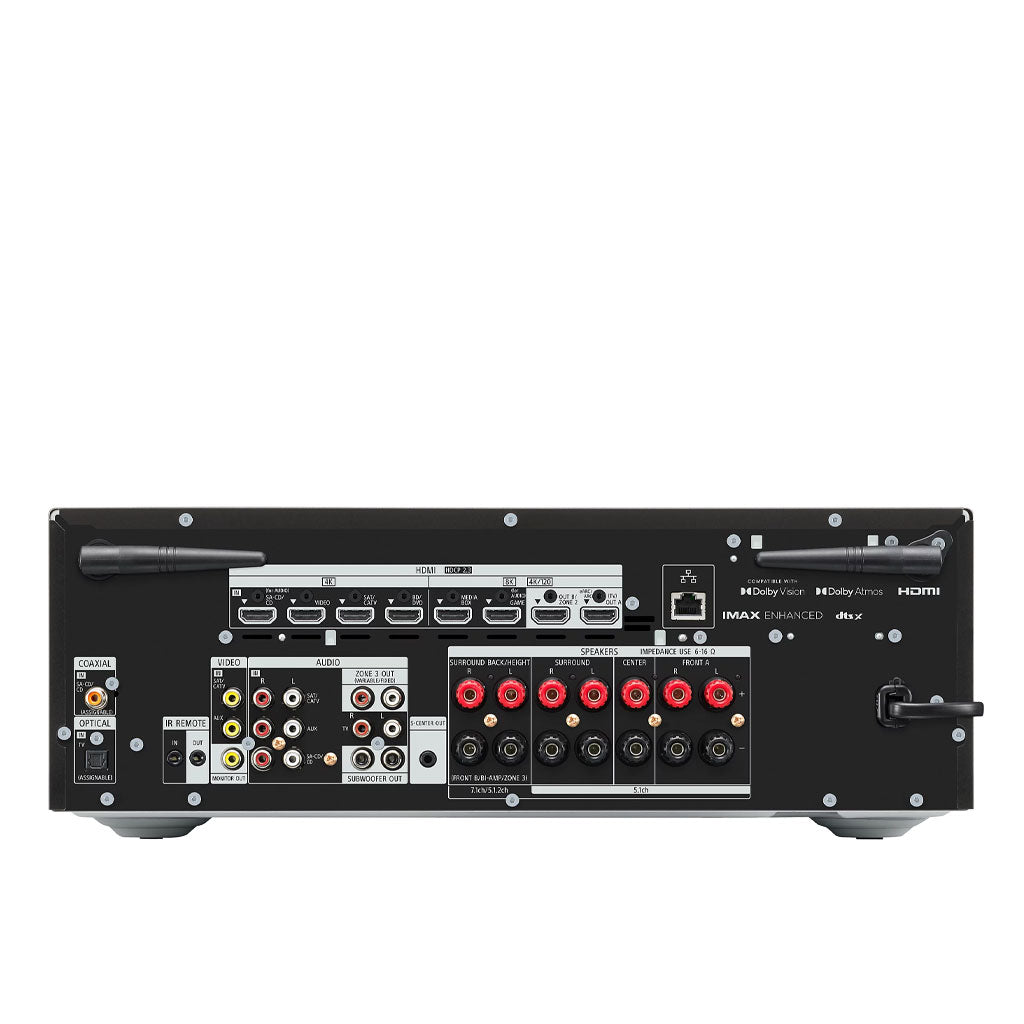

Interface
HDMI Input supporting HDCP2.2(Front) 6(0)
HDMI Output supporting HDCP2.2 2
Opt 1
Coax. 1
Analog Audio In 4
Pre Out (Subwoofer) 2
Composite Monitor Out 1
Headphone Out Yes
USB Front(ver) / Rear(ver) 1/0
Ethernet Port (Power over Ethernet) 1(0)
Front A Yes
Center Yes
Surround Yes
Surround Back Yes
Zone2 -
Height Yes(Common with Surround Back)
Front B Yes(Common with Surround Back)
Bi-AMP Yes(Common with Surround Back)
Decoding Format for HDMI
DSD Yes (Up to 2.8MHz 5.1ch)
LPCM Yes (Up to 192kHz/24 bit 7.1ch)
Dolby Atmos Yes
Dolby TrueHD/Dolby Digital Plus Yes/Yes
Dolby Dual Mono Yes
DTS:X Yes
DTS HD MA / DTS HD HR Yes/Yes
DTS / DTS-ES (Matrix6.1 / Discrete6.1) Yes/Yes
DTS 96/24 Yes
Decoding Format for USB/Network Client
DSDIFF(DSD) Yes
DSF Yes
WAV(LPCM) Yes
AIFF(LPCM) Yes
FLAC Yes
ALAC Yes
Music Decoding Formats -
Auto Speaker Calibration
D.C.A.C. IX / D.C.A.C. EX / Advanced D.C.A.C. / D.C.A.C. D.C.A.C. IX
Speaker Relocation Yes
Phantom Surround Back Yes
Automatic Phase Matching Yes
Calibration Mic Stereo
Custom Install & Control Features
2nd A HDMI(Fixed)
HDMI Zone -
IR Repeat (In/Out) Yes(1/1)
Network Connectivity
Spotify Connect Yes
Bluetooth Receiver Yes
Bluetooth Transmitter Yes
NFC -
Wi-Fi Yes
Size & Weight

Receiver Dimension(WxHxD mm) 430x156x331mm
Receiver Weight(kg) 10.3kg
General Features

GUI Yes
Power Requirement 230V 50/60Hz
AC Adaptor -
Power Consumption 240W

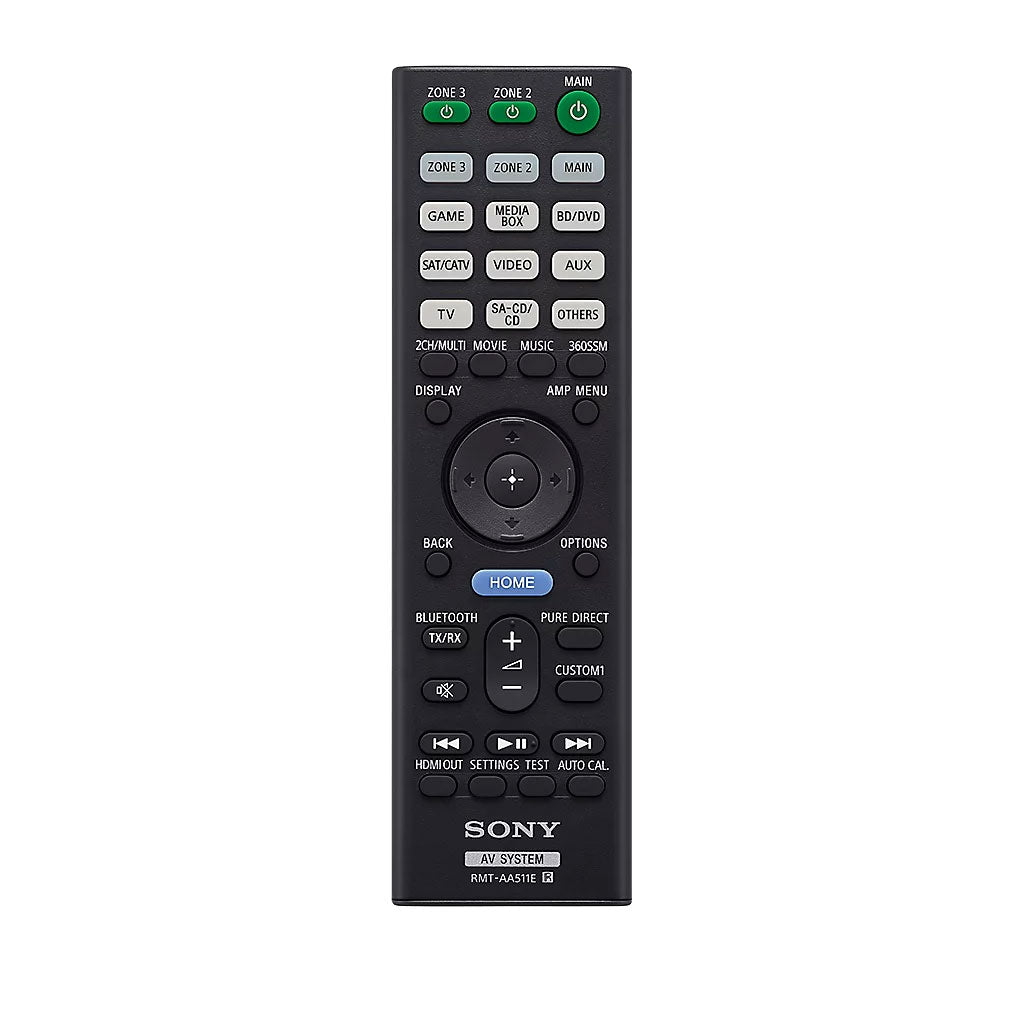

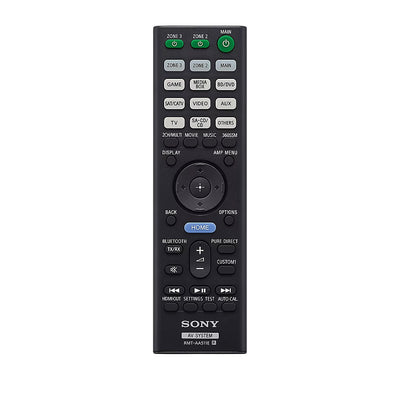

Attachment Calibration microphone, Calibration mic stand,  Remote control, R03 (size-AAA) batteries
