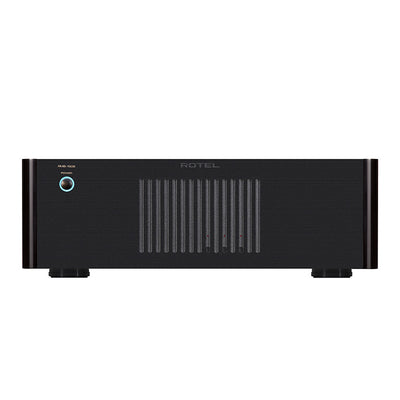

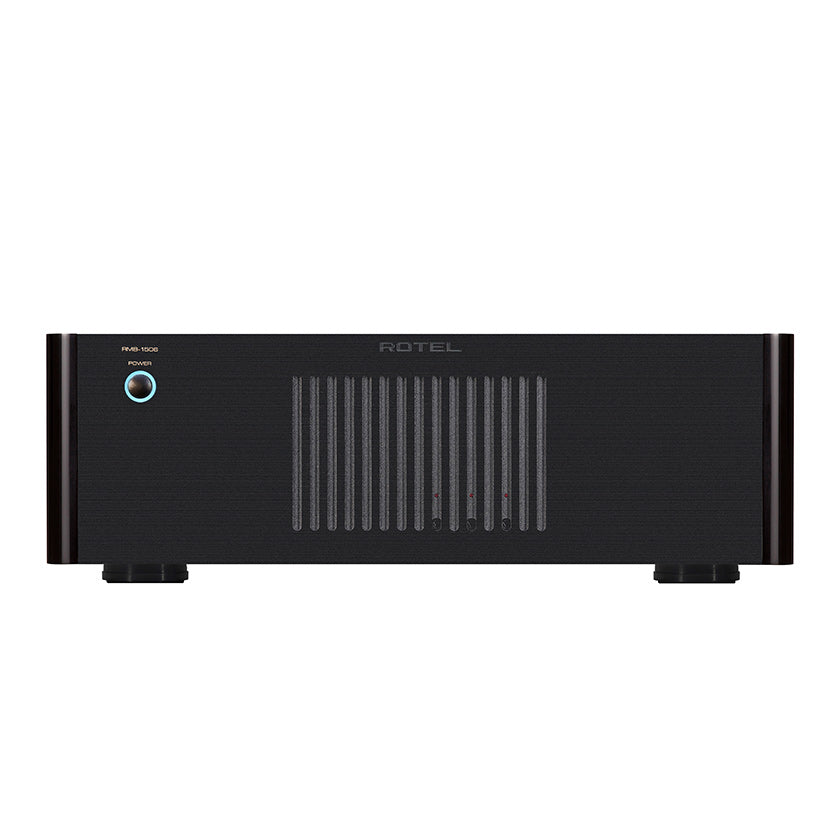

Rotel RMB-1506 6 Channel Power Amplifier
6 x 50 Watts of robust power
Class AB amplifier design
Optional rack ears available
Automatic signal sensing
12 volt trigger input
The RMB-1506 is perfect for less elaborate multizone audio systems and can be mated with our surround receiver or our preamp/processors to add music throughout three additional living areas or “zones” of your home. A buffered link output allows you to link additional amplifiers for larger multizone applications.
As with all Rotel custom amplifiers it includes the most wanted custom installation features such as front panel attenuation control, input linking, 12-volt trigger, buffered link output, five-way binding posts and an IEC detachable power cord.
|Dimensions ||W × H × D)|
431 × 144 × 424mm
17" × 5.7" × 16.7"
|Front Panel Height ||3U / 132.6mm (5.25")|
|Power Requirements ||230V, 50Hz|
|Power Consumption ||450W|
|Standby Power Consumption ||2.6W|
|Continuous Power Output ||50W/Ch (All channels driven, 8Ω)|
80W/Ch (All channels driven, 4Ω)
|Net Weight ||15.3kg (34lbs.)|
*Product description, details and specification subject to change. Please check the manufacturer's website for the most recent information. Errors and omissions excepted.
