Marantz Model 30 Integrated Amplifier

Get the most musical sound possible from this Master-tuned integrated amplifier. Its custom-designed HDAM delivers exquisite detail and unforgettable musicality from any style of music. Featuring a fully discrete, two stage design for minimal interference, MODEL 30 offers exceptional sound quality.

Key Features

Tuned with passion: Hundreds of hours of thoughtful Sound Master tuning ensure the exquisite detail and musicality Marantz always delivers.

Fashioned to last: You see and feel it in the build quality, and you hear it every time. No matter your musical passions, your music always sounds better with MODEL 30.

Fully discrete and accurate detailing: Marantz HDAM-SA3 technology is comprised of dozens of independent parts, each hand-selected for pure, detailed Marantz sound.

Extraordinary sensitivity: Designed to replicate the sensitivity and feel of a vintage analogue amplifier even when simply adjusting the volume.

The Most Musical, Accurate, Detailed Sound

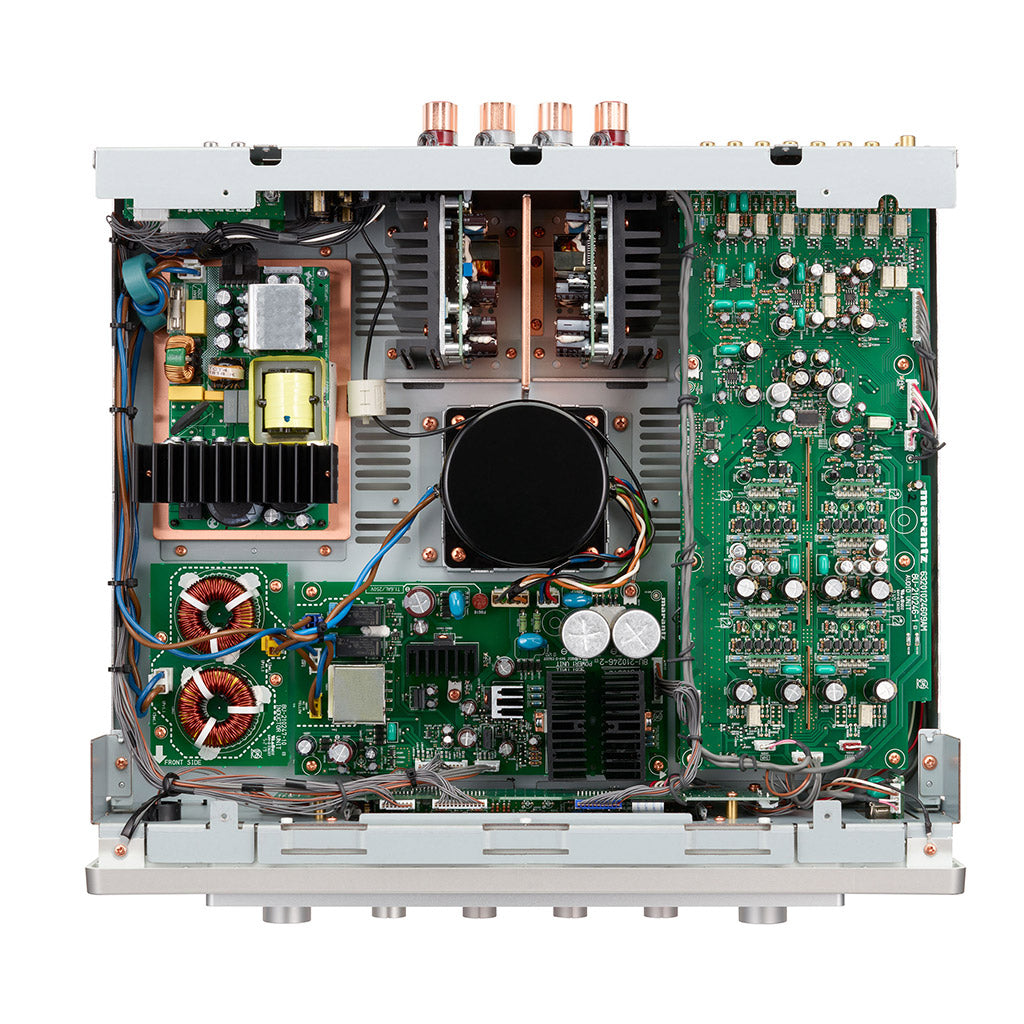

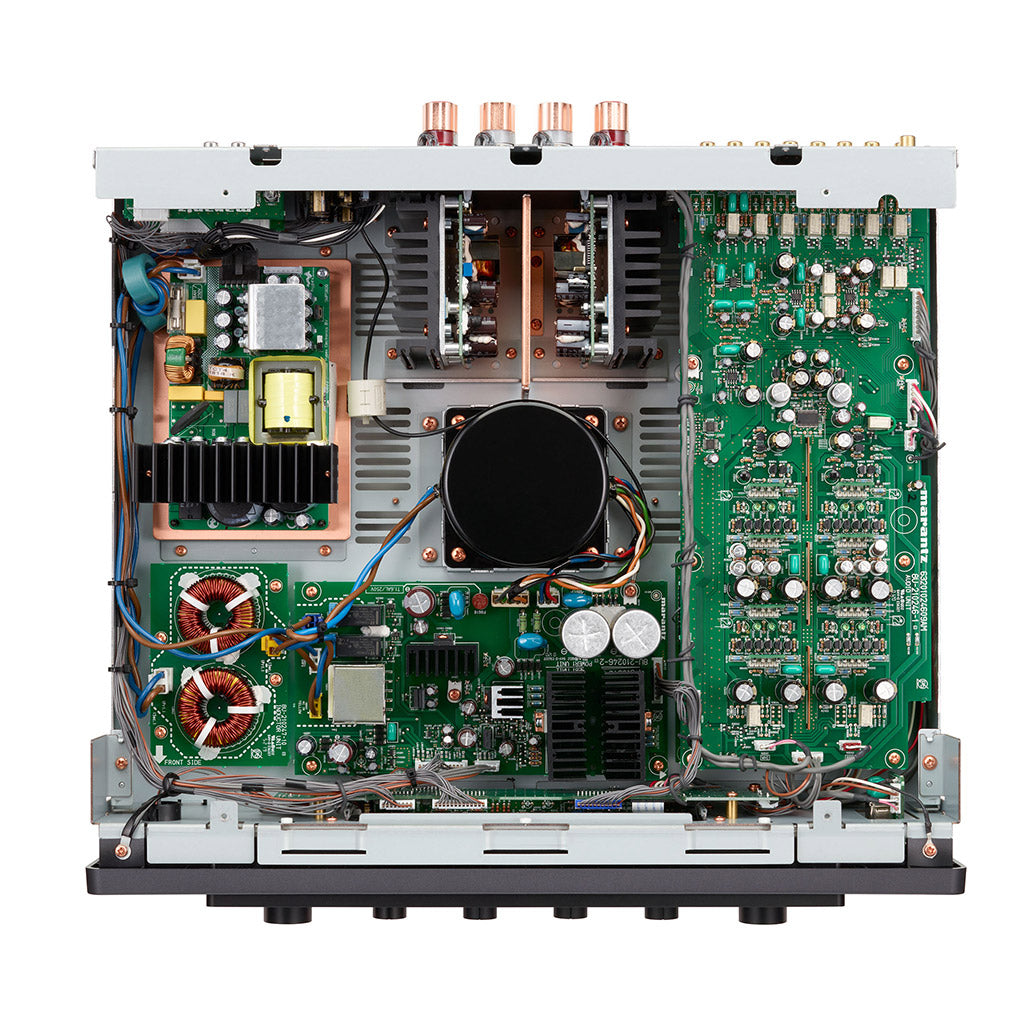

MODEL 30 is built on its own discrete circuit board, the Hyper-Dynamic Amplifier Module, or HDAM. By custom-curating hundreds of individual parts, rather than adopting an off-the-shelf solution, the MODEL 30 HDAM significantly outperforms standard integrated circuits to create the unique musicality you always expect from Marantz.

Switching Power Amplifications

MODEL 30 maintains the purest possible sound and supports the power needed to drive the most demanding speakers. The amplifier output stage of MODEL 30 allows a large power output, delivering 2x100W into an 8ohms load, and easily copes with low impedance speakers thanks to a 2x200W output into 4ohms. Because the feedback is taken after the output filter coil in this switching amplification design, the output frequency response stays the same and is not influenced by the impedance of the connected loudspeaker, ensuring the most musical sound no matter the loudspeakers. The amplifier module connects directly to the rear panel PCB on MODEL 30 to minimize the output path to maintain signal purity and sound stability.

Multiple Analogue Inputs and Outputs

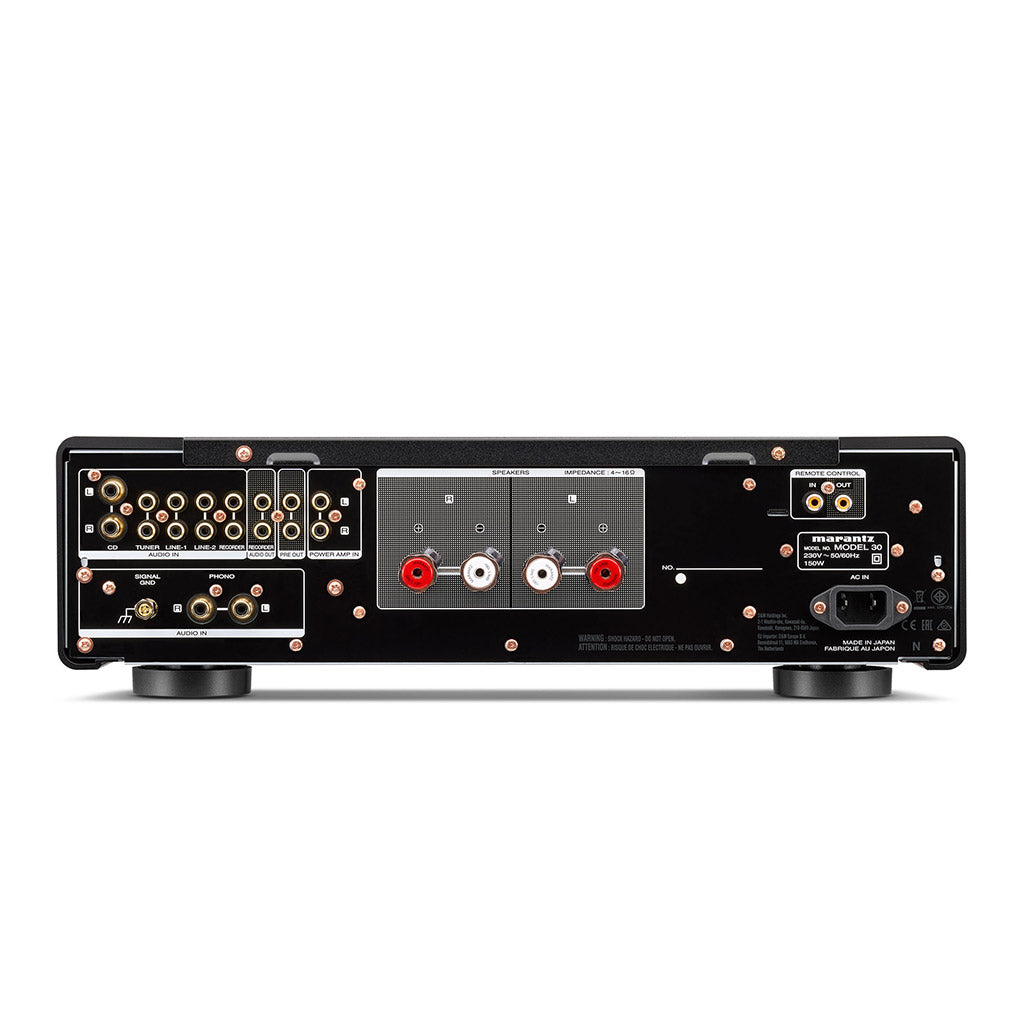

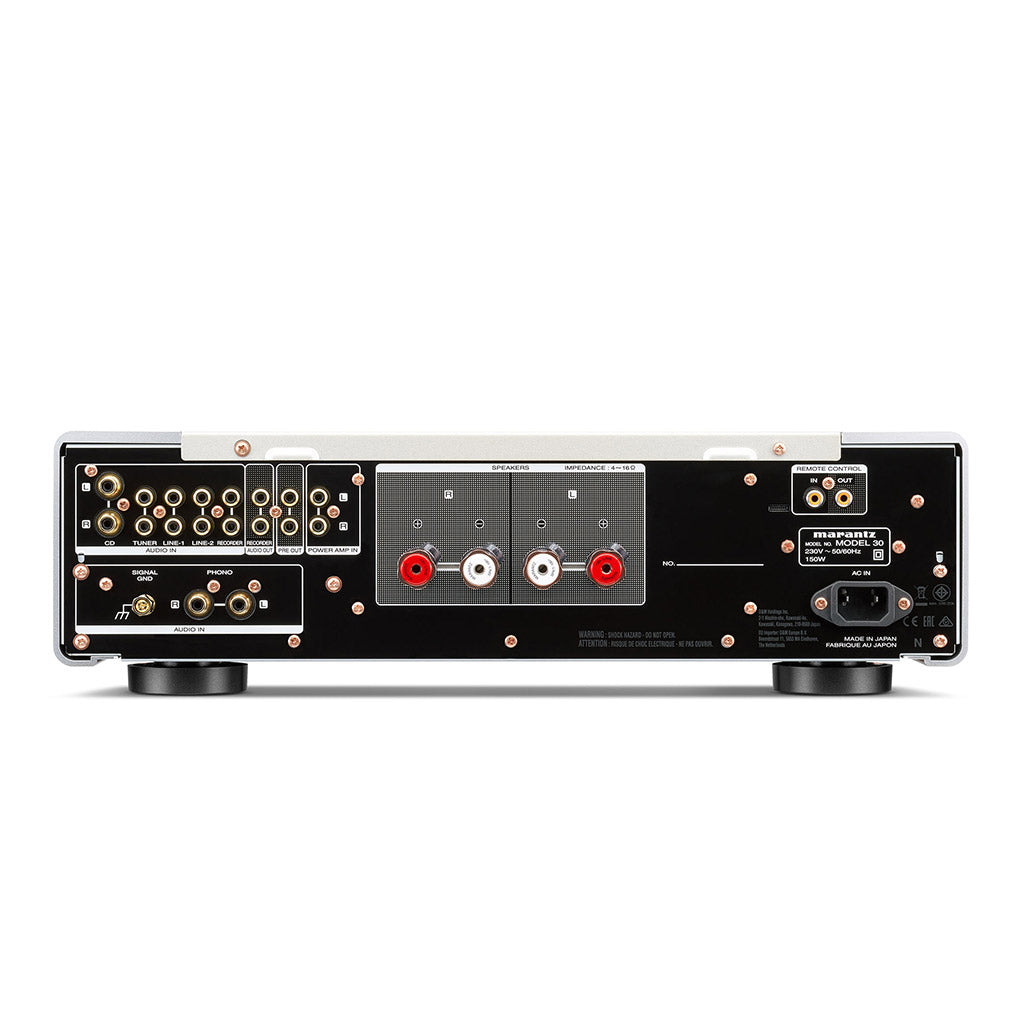

In addition to phono and CD analogue inputs, MODEL 30 features two line-level inputs and one pair of recorder input/output jacks that enable the connection of multiple sources and recorders. Use MODEL 30 as a standalone stereo power amplifier for additional system configuration versatility with the included power amp direct input. For example, use the front pre-outs of your AV setup and run them through MODEL 30 power amps.

Marantz Musical Premium Phono EQ

Envisioned to deliver optimal sound quality by simplifying the signal path – vital given the delicate nature of phono signals – the Phono EQ stage in MODEL 30 can be used with both moving magnet and low-output moving coil cartridges, thanks to a built-in MC head amplifier.

The design lowers distortion, which is why the phono stage uses two-stage amplification, combining Marantz HDAMs with JFETs in the input stage, giving high input impedance. This allows the non-negative-feedback design to be further simplified by the deletion of coupling capacitors, again reducing distortion and enhancing signal purity.

MC / MM phono input impedance selector

In order to optimize sound performance when using a moving coil (MC) or magnetic moving (MM) cartridge, and to accommodate all configurations as much as possible, MODEL 30 is equipped with an input impedance selector. The input impedance can be adjusted to three different settings: MC LOW (33 ohm), MC MID (100 ohm) and MC HIGH (390 ohm).

Built for Generations

Like its counterpart, the SACD 30n Streaming CD Player, the MODEL 30 Integrated Amplifier is designed to the highest standards. The solid chassis is constructed from thick, heavy, non-magnetic aluminum panels and a rigid steel top cover to eliminate added interference. Sturdy, brass machined independent input terminals for CD and Phono plus Marantz original high-quality/high-purity nickel-plated speaker terminals ensure the best signal possible.

Features

Aluminium extrusion heat sink o (Separate)
Balance / Bass / Treble / Loudness o / o / o / -
Channels 2
Current Feedback Topology o
Customised Components o
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
HDAM version SA3, SA2
High Grade Audio Components o
Phono EQ: Standard / Marantz Musical / Marantz Musical Premium - / - / o
Power Transformer: Toroidal / El SMPS
Symmetric PCB Layout o

General

Auto power off o
Carton Maximum Dimensions (W x D x H) in mm 534 x 522 x 255
Carton Weight (inc. product) in kg 17.6
Detachable Power Cable o
Maximum Dimensions (W x D x H) in mm 443 x 431 x 130
Metal Front Panel o
Power Consumption in W 130
Remote Control RC002PMND
Standby Consumption in W 0.2
System Remote Function o
Weight in kg 14.8

Inputs/Outputs

Audio Inputs 6
Audio Outputs 1
Balanced In / Out - / -
D-Bus o
Digital in: USB-B / optical / coaxial / USB-A - / - / - / -
Floating Control Bus (3.5 mm mono jack x 2) -
Gold Plated Cinch o
HDMI: inputs / outputs -
Headphone Gain Control (low / mid / high) -
Headphone Out o
Number of terminals 2
Phono Input: MM / MC o / o
Power Amp Direct IN o
Pre-out / Main-in o / -
Speaker A / B -
Speaker Terminals Marantz SPKT-100+

Specifications

Damping Factor 500
Frequency Response 5 Hz - 50kHz
Input Sensitivity: Balanced High level -
Input Sensitivity: High level 220 mV / 13 kohm
Input Sensitivity: MC 250
Input Sensitivity: MM 2.3 mV / 39 kohm
Input Sensitivity: Power Amp Direct IN -
Power Output (8 / 4 Ohm RMS) 100 W / 200 W
Signal to Noise Ratio: High level 107 dB(2V input/Rated output)
Signal to Noise Ratio: MM / MC 88 / 75 dB
Signal to Noise Ratio: Power Amp Direct IN -
Total Harmonic Distortion 0.005%
