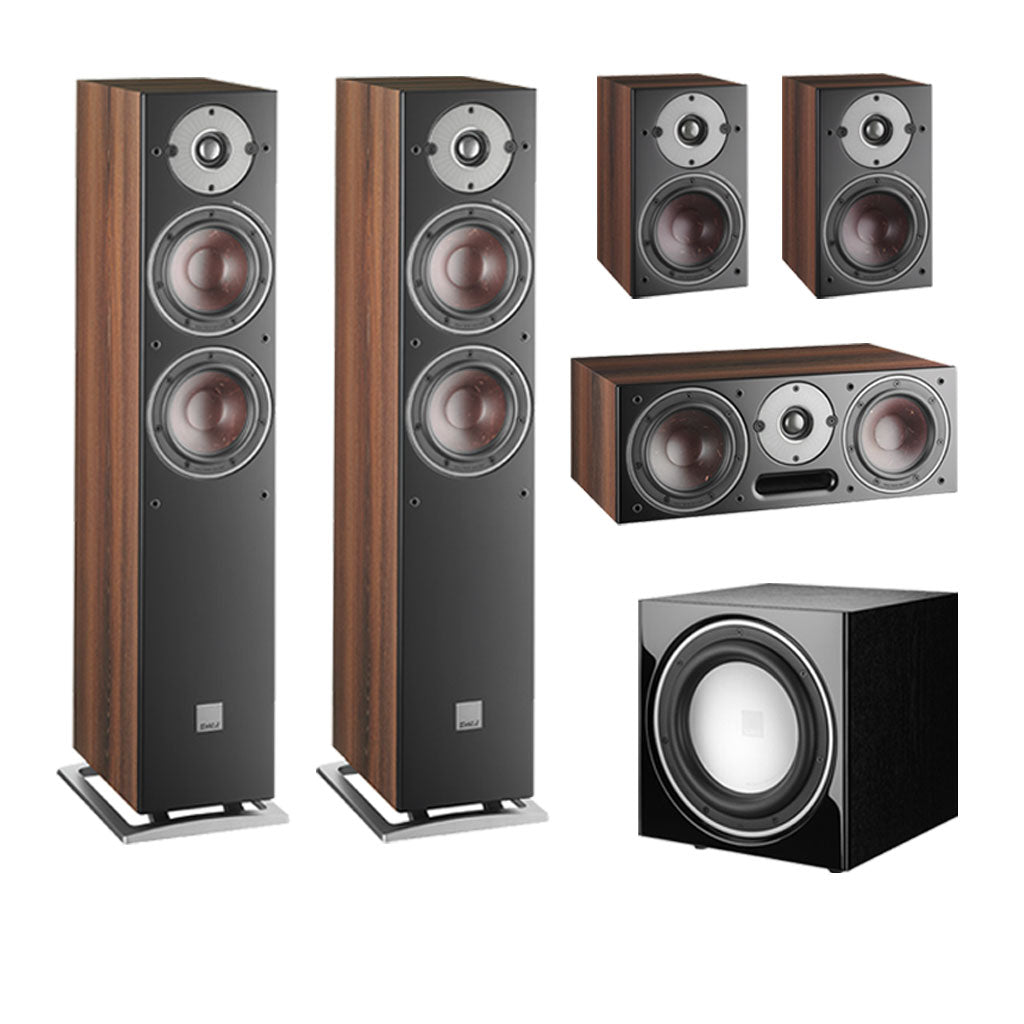

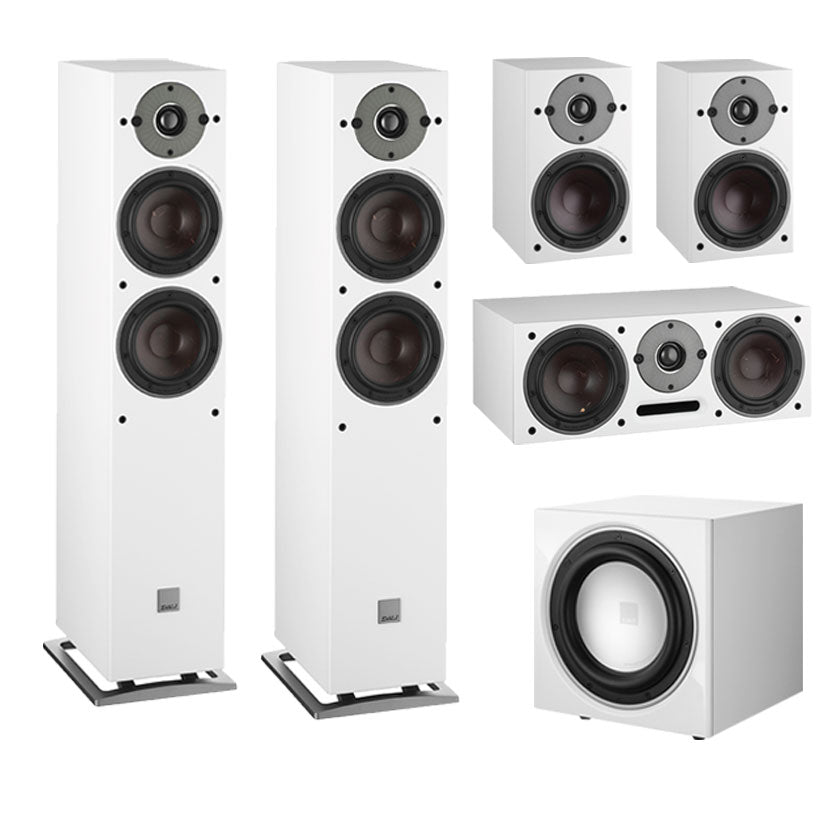

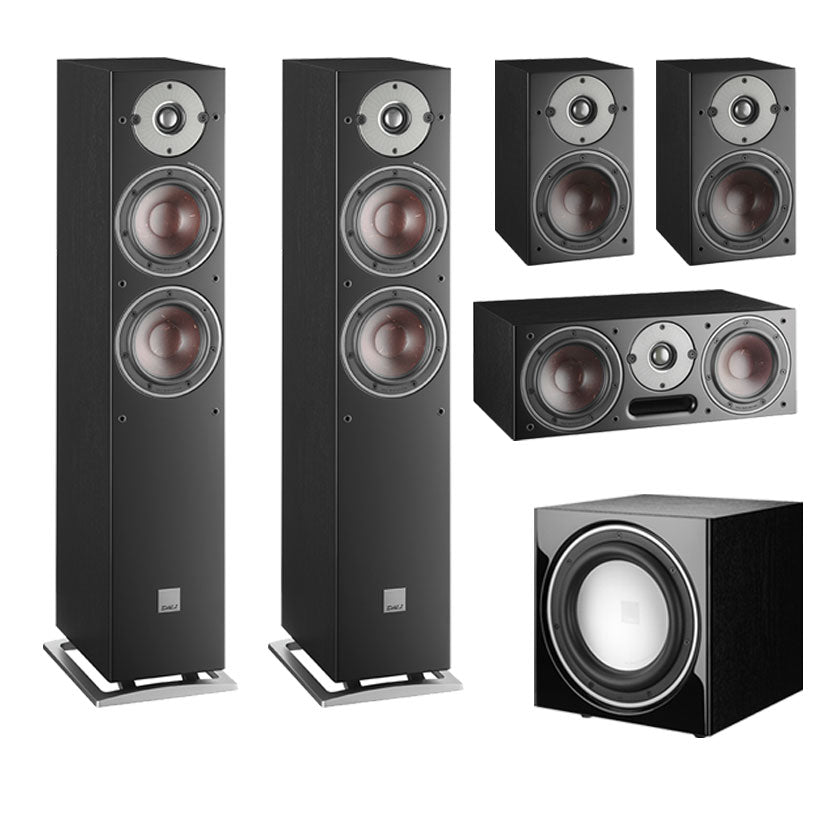

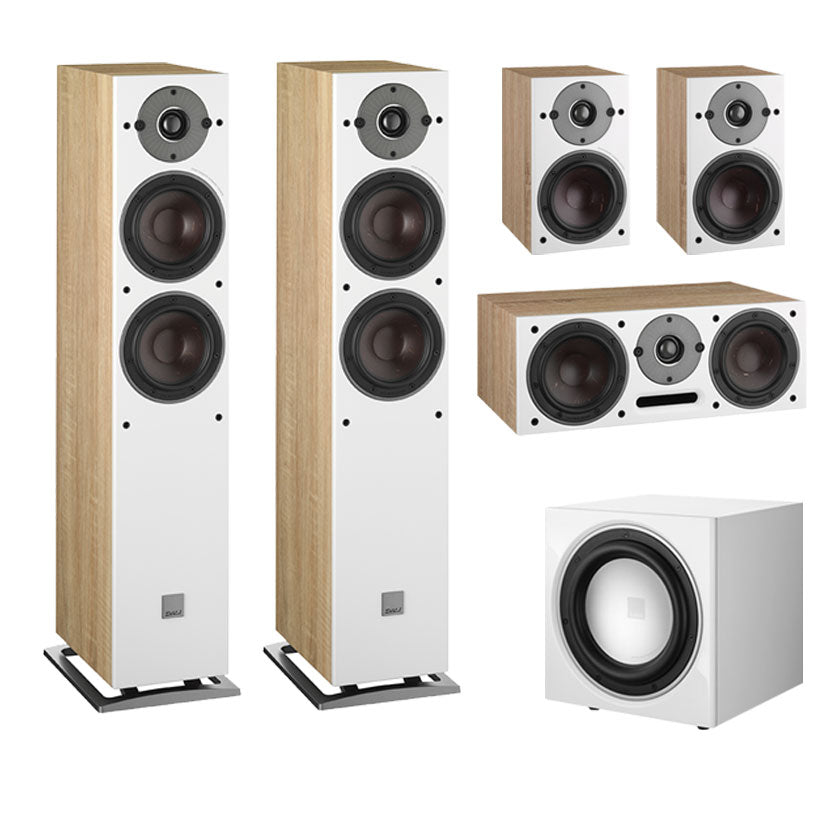

Dali Oberon 5 5.1 Speaker Package

DALI OBERON 5 FLOORSTANDING SPEAKERS
OVERVIEW

The Oberon 5 is the ultimate performer. A compact and elegant floor-standing speaker, housing 2 x 5¼” wood fibre SMC based woofers and the series’ wide bandwidth 29 mm ultra-lightweight soft dome tweeter. This slim floor-stander will surprise with its ability to deliver a deep firm bass. Together with the clear and well defined mid-range and the airy high frequencies, this speaker is at home with any music or movie sound track.

KEY FEATURES

Dali have made it easy to integrate the Oberon 5 into any room, as both the driver materials and geometry applied have been selected to achieve a wide dispersion pattern in the listening area. The same principles have been applied in the design of the crossover.
As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your speakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.

WOOFER

The Oberon 5 features a pair of 5.25" low-loss woofers that are optimised with a new wood fibre structured cone which is dedicated to reproduce the delicate midrange and bass frequency area - like every other driver made by DALI. It is constructed from a blend of fine grain paper pulp and reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.

The membrane terminates in a rubber surround that is chosen for its soft and very flexible properties. This gives the membrane free movement with a very low dampening effect, and leaves the magnet motor to control the membrane movement.

SMC

The use of SMC in the Oberon 5 greatly reduces mechanical distortion caused by hysteresis and eddy currents. These combined improvements in the magnet motor system results in a lowering of third order distortion. This allows the Oberon 5 to present longer listening pleasure, a relaxed midrange and a surprising amount of detailing for the class.

The magnet motor itself consists of a large ferrite magnet that surrounds a pole piece made with a unique combination of iron and SMC. The iron ferrite forms the lower base of the pole cylinder, topped of with 10 mm SMC disk to crown the pole piece. This combination minimises the negative effects of the iron, while placing the SMC disk right in the main working area of the 4-layer voice coil. This placement ensures the maximum effect from the SMC on the voice coils environment, resulting in a greatly improved constant flux field.

TWEETER

The 29 mm ultra-light soft dome tweeter used in the Oberon 5 is manufactured by DALI and has been developed specifically for the Oberon series - combining well proven technologies from our existing DALI ranges with new features.

The large size of the membrane lets the tweeter generate higher sound pressure with less excursion, keeping the voice coil motion to a precise minimum.

The oversized 29 mm membrane is constructed based on an ultra-light wave weave fabric and is additionally optimised for a larger bandwidth in its lower frequency area. This ensures the optimal handover from the midrange woofer to the tweeter, creating a well-balanced, unforced and very coherent upper midrange. Compared to most soft dome tweeters in the market, the DALI dome material is less than half the weight (0.060 mg/mm2).

The tweeter front plate near the dome has been designed with similar geometry as the Opticon and Rubicon tweeters to create the optimal working conditions for the soft dome. The aim is to combine an extended frequency response with wide dispersion and low coloration.

CABINET

The Oberon 5 cabinet employs a very rigid construction, with solid bracings across the inside of the cabinet for reinforcement. This contributes to the stiffness and practically eliminates resonance within the cabinet. The cabinet housing of the Oberon 5 is constructed from high-density CNC machined MDF board - dressed in carefully selected high-grade vinyl.

To optimise timing, the speakers are fitted with acoustic damping material internally along the sides, top and bottom. This creates a more direct contact between woofer and bass port. The audible result is a more precise bass and increased ‘attack’ in the midrange.

The bass ports are placed on the rear of the Oberon 5, optimising room integration by utilising the wall for improved bass performance.

With the Oberon range, DALI introduces a brand new front grille design. The new rounded front grille adds a lighter and more contemporary visual look to the speaker series. 'Mountain Grey' is the standard grille supplied with the light finishes (White and Light Oak), while 'Shadow Black' is standard on the dark finishes (Black Ash and Dark Walnut). For an all white look, 'Marshmallow White' is also available as an accessory.

The elegantly shaped aluminium base gives the floor-standing Oberon 5 a lighter look.

OBERON 1 BOOKSHELF SPEAKERS

The DALI OBERON 1 is an ultra compact bookshelf speaker. The cabinet size enables an optimal balance between inner volume for bass performance and a compact appearance for easy integration - suited for smaller rooms, discreet HiFi setups, Home Cinema systems or wall mounting. It features the same oversized 29 mm ultra-lightweight soft dome tweeter as its floor-standing siblings, and a SMC based 5.25" wood fibre woofer to handle lower midrange and bass. The OBERON 1 is based on the most innovative DALI ideas, traditions and inventions - united in a sleek compact design.

WOOD FIBRE CONE

The OBERON woofer features a wood fibre cone with a blend of fine grain paper pulp, reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.

OBERON VOKAL

The DALI Oberon Vokal delivers a precise, clear and detailed sound performance for both your movie as well concert sound track. It is designed to be the perfect match with any of the speakers in the Oberon series for a complete surround system. It houses an 29 mm ultra-lightweight soft dome tweeter and 2 x 5.25" SMC based wood fibre woofers - combining technologies which make it possible to create a speaker that will render audio like a much larger model.

KEY FEATURES

We have united the best elements from our current speakers and brought them together in the Oberon Vokal to deliver on audio quality, looks and versatility. The Oberon Vokal houses an oversized 29 mm soft dome tweeter together with 2 x 5.25" SMC based wood fibre woofers - supported by the front-facing bass port, which makes the centre speaker easy to place. For these reasons, it's the perfect choice for surround setups.

To achieve a wide dispersion pattern in the listening area, the driver materials and geometry applied have been carefully selected. The same principles have been applied in the design of the crossover. As result, you will experience a well-integrated sound, even when listening at a significant off-axis angle. This is important as you are rarely seated directly in front of your loudspeakers when listening to music. An added benefit is seriously reduced harmonic distortion and diffractions causing frequency distortion, as these will always be stronger in an on-axis response. This is also the reason why all DALI speakers are not designed to be toed-in.

WOOFER

The Oberon Vokal features a pair of 5.25" low-loss woofers that are optimised with a new wood fibre structured cone which is dedicated to reproduce the delicate midrange and bass frequency area - like every other driver made by DALI. It is constructed from a blend of fine grain paper pulp and reinforced with wood fibres, which creates a stiff, light-weight and well-behaving structure. In combination with a low-loss surround and spider suspension, this cone reproduces the micro details in the signal - unfiltered and with high accuracy.

The membrane terminates in a rubber surround that is chosen for its soft and very flexible properties. This gives the membrane free movement with a very low dampening effect, and leaves the magnet motor to control the membrane movement.

TWEETER

The 29 mm ultra-light soft dome tweeter used in the Oberon  Vokal is manufactured by DALI and has been developed specifically for the Oberon series - combining well proven technologies from our existing DALI ranges with new features.

The large size of the membrane lets the tweeter generate higher sound pressure with less excursion, keeping the voice coil motion to a precise minimum.

The oversized 29 mm membrane is constructed based on an ultra-light wave weave fabric and is additionally optimised for a larger bandwidth in its lower frequency area. This ensures the optimal handover from the midrange woofer to the tweeter, creating a well-balanced, unforced and very coherent upper midrange. Compared to most soft dome tweeters in the market, the DALI dome material is less than half the weight (0.060 mg/mm2).

The tweeter front plate near the dome has been designed with similar geometry as the Opticon and Rubicon tweeters to create the optimal working conditions for the soft dome. The aim is to combine an extended frequency response with wide dispersion and low coloration.

CABINET

The Oberon Vokal cabinet employs a very rigid construction, with solid bracings across the inside of the cabinet for reinforcement. This contributes to the stiffness and practically eliminates resonance within the cabinet. The cabinet housing of the Oberon Vokal is constructed from high-density CNC machined MDF board - dressed in carefully selected high-grade vinyl.

To optimise timing, the speakers are fitted with acoustic damping material internally along the sides, top and bottom. This creates a more direct contact between woofer and bass port. The audible result is a more precise bass and increased ‘attack’ in the midrange.

The bass ports are placed on the rear of the Oberon Vokal, optimising room integration by utilising the wall for improved bass performance.

With the Oberon range, DALI introduces a brand new front grille design. The new rounded front grille adds a lighter and more contemporary visual look to the speaker series. 'Mountain Grey' is the standard grille supplied with the light finishes (White and Light Oak), while 'Shadow Black' is standard on the dark finishes (Black Ash and Dark Walnut). For an all white look, 'Marshmallow White' is also available as an accessory.

E-9F SUBWOOFER

The new subwoofer from DALI features a 9" woofer, capable of moving lots of air with power and precision. The cone is made from pure aluminium for maximum stiffness and a becoming exterior. Furthermore, the heavy magnet system wields a massive 4-layer, long-stroke voice coil.

All in all, the heavy-duty abilities of this motor system ensure that the woofer always follows the signal from the amplifier!

The heart of this subwoofer is the 170W RMS Class D amplifier with a highly linear response. Embracing a classic DALI trademark, it simply acts as a total low frequency extension of your AV system. The result is a powerful, wellbalanced bass reproduction and flawless integration with your speakers. In addition, the integrated limiter helps protecting your subwoofer against overloading.

The back plate of SUB E-9 F features controls for volume adjustment, phase, and upper cut-off frequency, while the power on/off function works automatically via signal detection. And with the options for LFE or LINE inputs, this subwoofer easily accompanies any AV set up.

SUB E-9 F is elevated from the floor by cone shaped rubber feet, while a down-firing bass port allows positioning directly against the wall.

The DALI SUB E-9 F is recommended as compliment to the KUBIK FREE as well as the compact models of the ZENSOR and FAZON series. On top of this it is compatible with all DALI loudspeakers as the perfect completion of a DALI stereo or surround set up.


*Product description, details and specification subject to change. Please check the manufacturer's website for the most recent information. Errors and omissions excepted.
