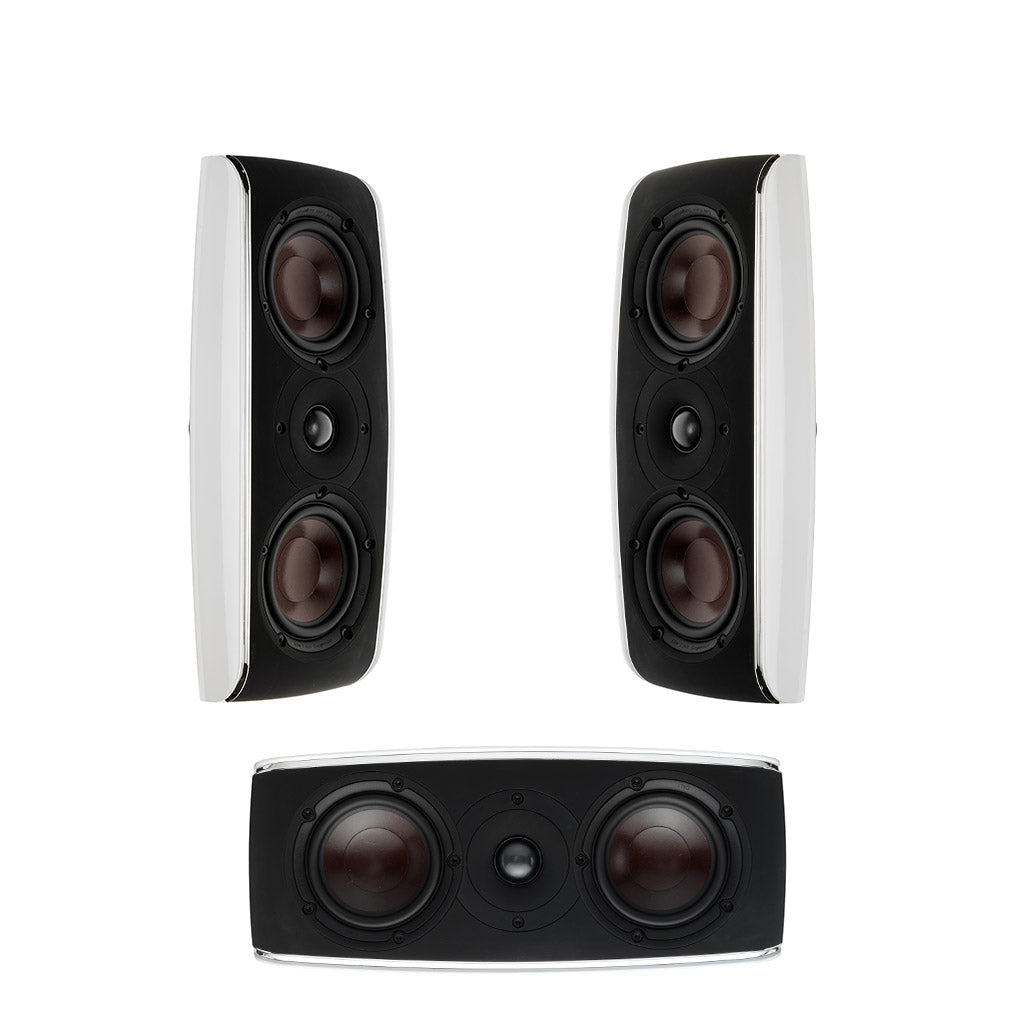

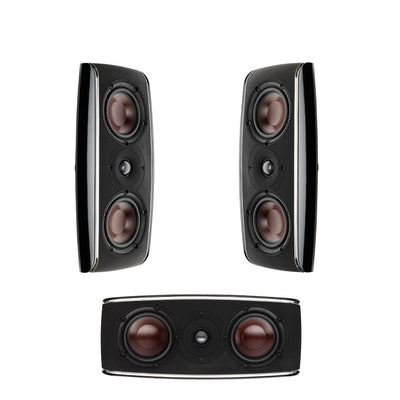

DALI FAZON LCR 3.0

5yr warranty

DALI FAZON LCR 3.0

The DALI FAZON LCR is an elegant loudspeaker designed to fit right into the modern home. This great satellite speaker can be used both for stereo or multi channel setups - even as a center channel speaker.

By combining appealing Danish design, genuine materials and excellence in driver- and speaker development, you get a high performance satellite loudspeaker for on-wall mounting by choosing the FAZON LCR. The satellite speaker can be used both for stereo or multi channel setups - even as a center channel speaker.

DALI FAZON LCR comes with a patent pending wall bracket, which makes connectivity and correct polarity very easy, no matter how the speaker is mounted. FAZON LCR is a versatile loudspeaker, which fits a modern lifestyle, where high performance and a compact form factor is in quest

Sound & Build Quality

The drivers in FAZON LCR have a lot of similarities with the drivers used in the multiple award winning DALI IKON and MENTOR speakers. The cabinet is made of die cast aluminum, which makes it possible to create an asymmetrical shape with internal bracings, which will suppress both acoustic and mechanical resonances in the cabinet structure.

FAZON LCR 3.1

In some rooms it can be difficult to accommodate surround speakers or to run the necessary cables. An obvious solution may be to go for a 3.1 system, for instance three FAZON LCR and a DALI SUB

CLICK 'N' CONNECT

No cables, no connectors, no hassle – just use the Click'n'Connect wall bracket that is delivered with the speaker. The FAZON LCR wall bracket ensures an easy and secure fixation on the wall, and at the same time a hassle-free audio-grade connection of the speaker.

On the rear side of the Click'n'Connect connector, the high quality audio grade crossover is mounted - ensuring a short signal path. Speaker wires are fastened to the gold plated connectors on the back side of the wall bracket, which are designed to allow the choice of a hidden wire (in-wall) or an on-wall speaker cable. Gold plated 4mm banana plug style Connector pins will ensure high quality electrical connection between the loudspeaker and the wall bracket.

The speaker may be rotated to desired vertical or horizontal orientation without affecting polarity. The correct connection is clearly recognised by an audible “click” when the speaker is pushed onto the wall bracket. For extra caution, the release button can be locked with an integrated lock-screw. Mounted on the wall the distance from wall to outer speaker point is only 11.5 cm/4.6 inches.

TWEETER

Most dome tweeters are 25–26mm diameter. FAZON LCR share tweeter technology with other DALI speakers, and are based on a 28mm voice coil. That means 25% longer voice coil circumference and better power handling, both short and long term compared to more common 1 inch tweeters. Moreover, power compression is reduced because of the oversized voice coil.

WOOFER

The FAZON LCR features a pair of 4.5 inch wood fibre cones, which have become a speciality in DALI driver designs since the introduction into the top-line EUPHONIA series.

Specification
Frequency Range (+/-3 dB) [Hz] 78 - 25,000
Sensitivity (2,83 V/1 m) [dB] 89.0
Nominal Impedance [ohms] 6
Maximum SPL [dB] 107
Recommended Amplifier Power [W] 15 - 120
Crossover Frequency [Hz] 3,000 Hz
High frequency driver, Quantity 1 x 28 mm
High frequency driver, Diaphragm type Soft Textile Dome
Low frequency driver, Quantity 2 x 4.5"
Low frequency driver, Diaphragm type Wood Fibre Cone
Enclosure type Closed Box
Connection Input Single Wire
Magnetic Shielding No
Recommended Placement Centre / Soundbar
On-Wall
Dimensions With Base (HxWxD) [mm] 385 x 157 x 117
Accessories Included Installation Templates
Manual
Mounting Brackets
Wall Bracket
Weight [kg] 3.5

*Product description, details and specification subject to change. Please check the manufacturer's website for the most recent information. Errors and omissions excepted.
