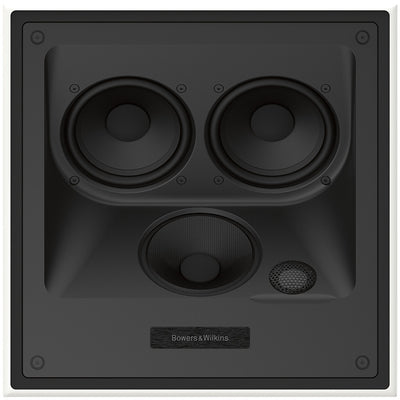

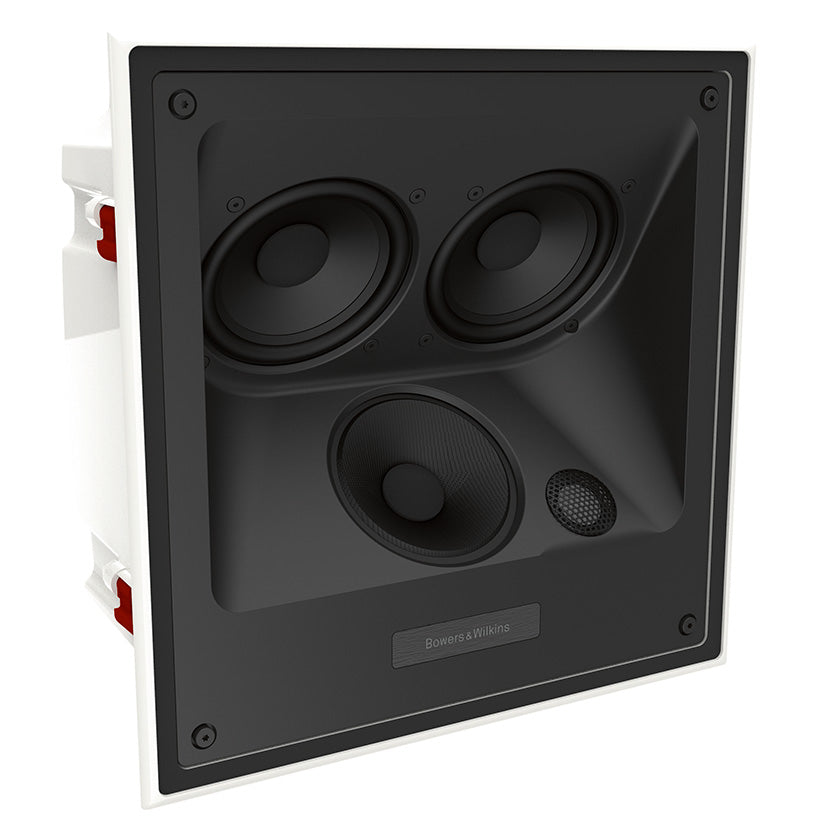

The CCM7.3 S2 is a high-performance in-ceiling speaker for outstanding performance in both theatre and stereo applications. Its sophisticated drive unit configuration features a 25mm(1in) Carbon Dome tweeter, a 100mm (4in) FSTTM Continuum cone midrange and 2 x 130mm (5in) Aerofoil Profile bass drivers. Its critically formed baffle is constructed from glass reinforced ABS while its integrated backbox ensures easy retrofittable installation, cuts down sound transfer between spaces and optimises sound quality.
Carbon Dome tweeter Continuum cone FST midrange Aerofoil profile bass cones
3-way in-ceiling system
1x ø25mm (1in) Carbon Dome high-frequency1x ø100mm (4in) Continuum cone FST midrange 2x ø130mm (5in) Aerofoil profile bass
(-6dB) -6dB at 52Hz and 33kHz
-3dB55Hz - 28kHz ±3dB
90dB spl (2.83Vrms, 1m)
2nd and 3rd harmonics (90dB, 1m) <1% 90Hz - 33kHz <0.5% 120Hz - 33kHz
8Ω (minimum 3.1Ω)
25W - 200W into 8Ω on unclipped programme
355mm (14in)
355mm (14in)Depth194.5mm (7.66in)
332mm (13.1in)
332mm (13.1in)
335mm (13.2in)
335mm (13.2in)
8mm (0.3in)
7C
9kg (19.84lb) Inc accessories
Back box: White

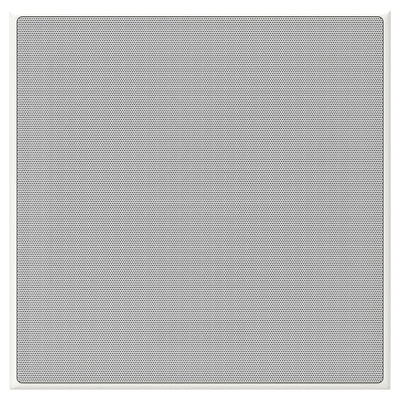

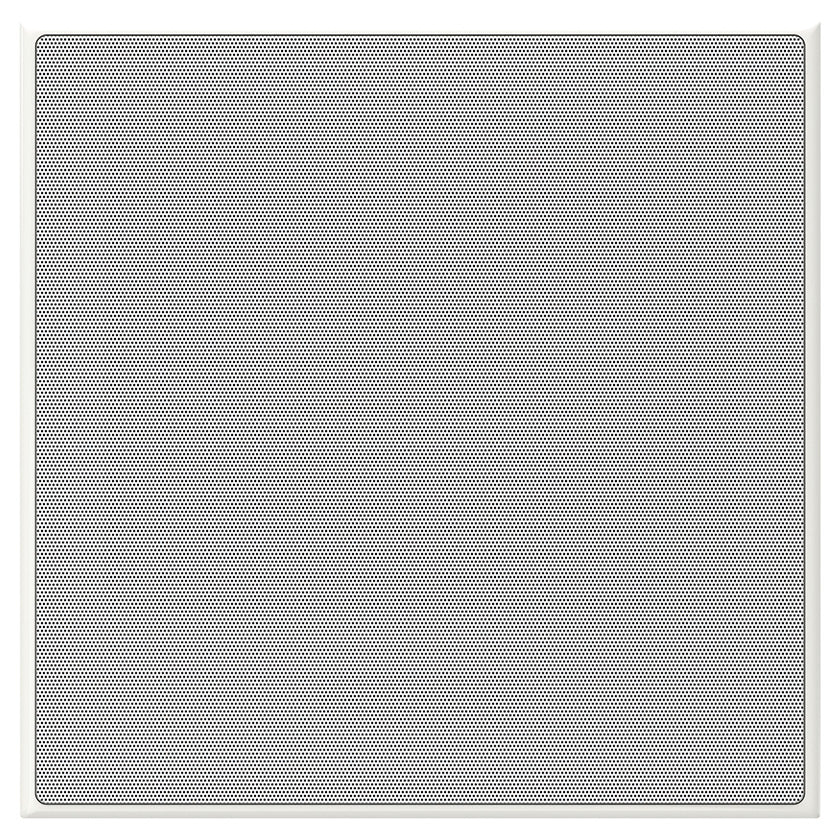

Grille: White
