Audio Technica AT-LP5X Manual Belt-Drive Turntable

2yr warranty
AVAILABLE
Order now for dispatch in 3-5 days*

Building on Audio-Technica’s analogue heritage and over 50 years of Japanese audio design, the AT-LP5x features upgraded technology while keeping the contemporary style and acclaimed performance of its predecessor, the AT-LP5.

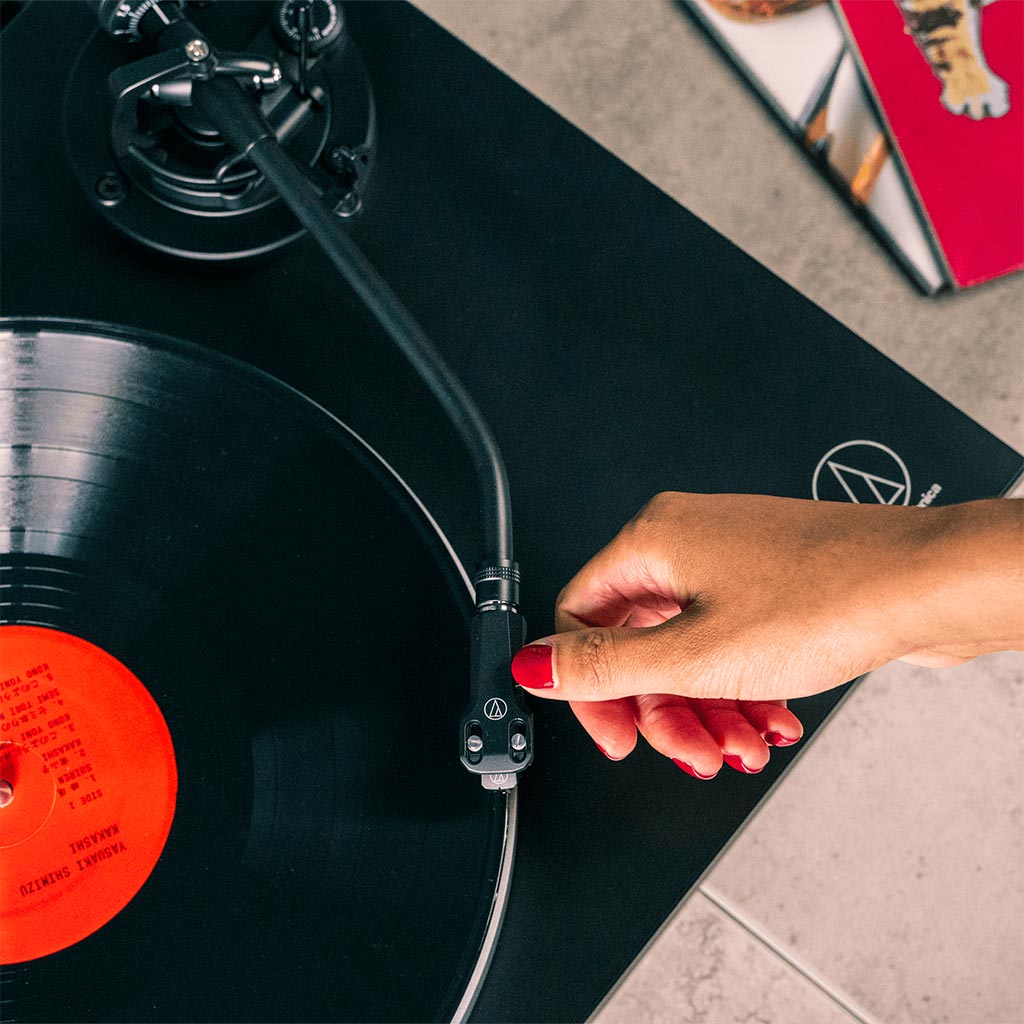

The LP5x retains the J-shaped tonearm, a design inspired by the classic Audio-Technica models of the 1960s and ’70s, and features a metallic gimbal suspension system and precision bearings to mitigate tracking errors. The tonearm also includes an adjustable counterweight and anti-skate control and comes fitted with a lightweight (9.3g) AT-HS6 headshell and the black AT-VM95E Dual Moving Magnet stereo cartridge.

Constructed of anti-vibration damping materials with heavy-mass metal chassis inserts, the AT-LP5x turntable has been designed to limit low-frequency acoustical feedback. Its precision-machined, die-cast aluminum platter is powered by a direct-drive, low-noise motor, ensuring stable, on-axis rotation at 33-1/3, 45 and 78 RPM. A 5 mm thick rubber-damping mat, which isolates from low frequency feedback while providing a highly stable surface for all LP formats, tops the platter.

The AT-LP5x features a built-in switchable MM/MC phono/line preamp that enables it to connect directly to a computer, home stereo, powered speakers and other components that have no dedicated turntable input. The selection of MM/MC cartridges allow for an easy upgrade to a moving coil with additional equipment. The turntable is also equipped with a USB output for direct connection to a computer.

High-Fidelity Heritage

Born of Audio-Technica’s rich analog heritage, the AT-LP5X incorporates a J-shaped tonearm that takes its inspiration from the classic A-T models of the 1960s and ’70s.

Latest Technology, Contemporary Style

This next-generation LP5 turntable pushes the acclaimed performance of its predecessor to new heights, with upgraded features like the versatile AT-VM95E cartridge and a preamp gain switch to accommodate both moving magnet and moving coil cartridges.

Over 55 Years of Analog Excellence

We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Features:

Direct-drive, low noise motor

Fully manual operation with three speeds: 33-1/3, 45 and 78 RPM

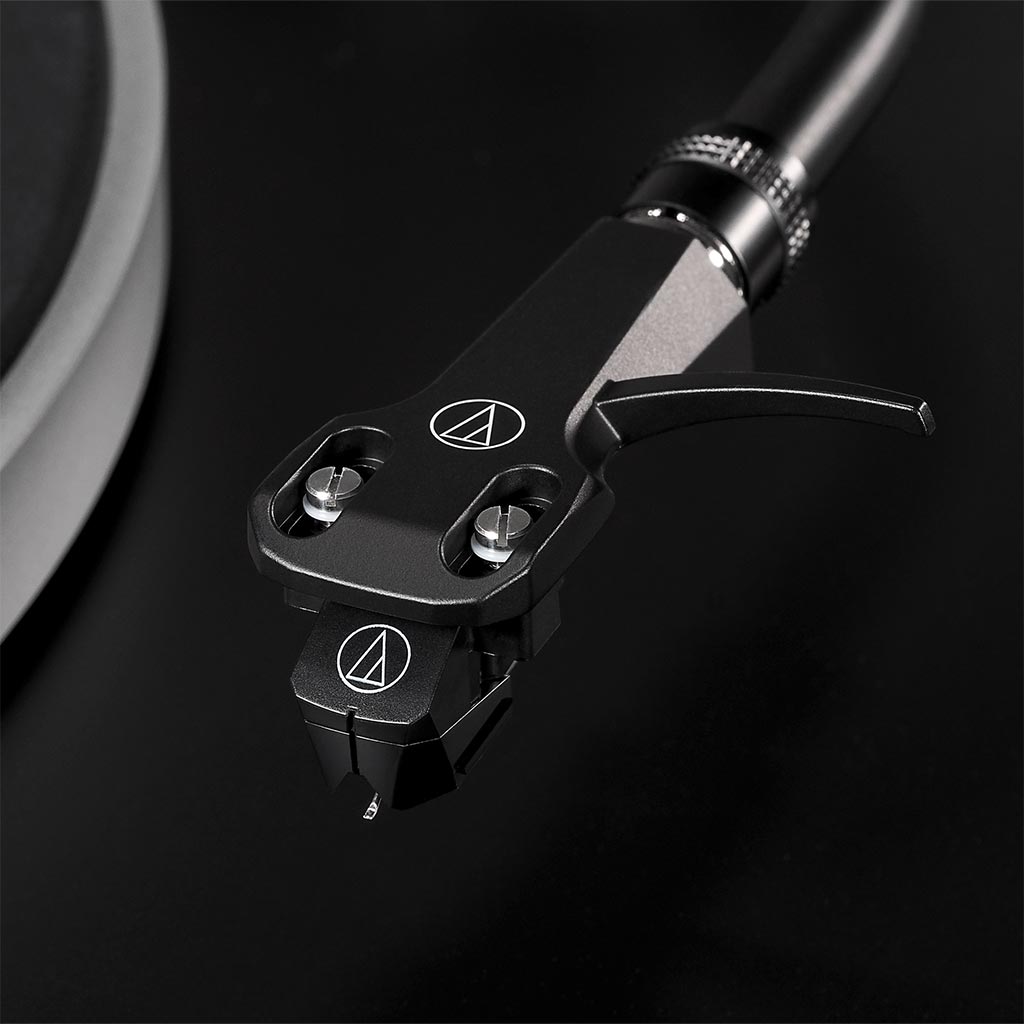

AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus

Lightweight AT-HS6 headshell

J-shaped tonearm, modeled after original Audio-Technica designs from the 1960s and ’70s, are engineered to minimize tracking errors

Switchable MM/MC built-in pre-amplifier and line enables connection to components with or without a dedicated phono input

Anti-resonance, die-cast aluminum platter

Heavy rubber damping mat for improved low-frequency reproduction

AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

Elegant matte black finish

Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, USB cable

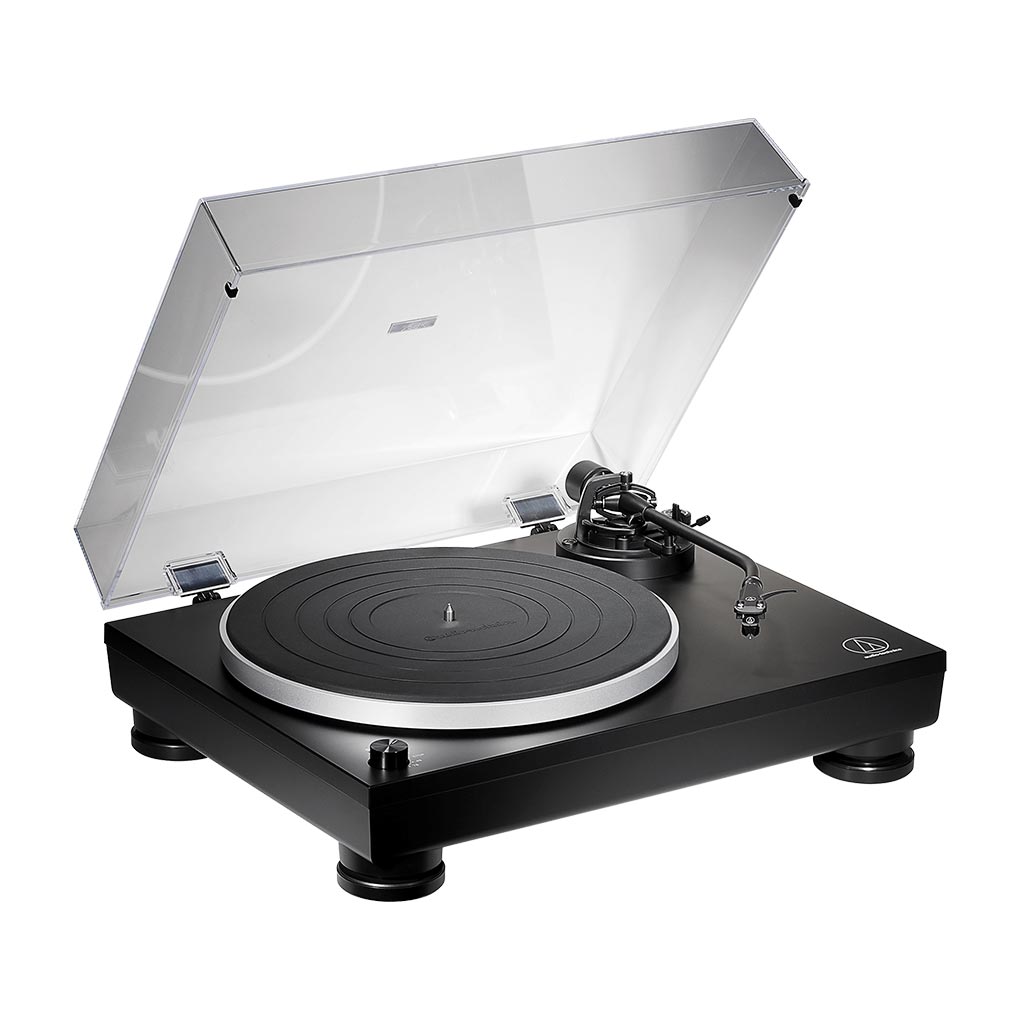

Included dust cover and mounting hardware

Specification:

Type 3-speed, fully manual operation

Motor DC motor

Drive Method Direct Drive

Speeds 33-1/3 RPM, 45 RPM, 78 RPM

Turntable Platter Die-cast aluminum

Starting Torque >1.0 kgf.cm

Braking System Electronic brake

Wow and Flutter <0.2% WRMS (33 RPM) at 3 KHz
Signal-to-Noise Ratio >50 dB

Output Level PHONO: 4.0 mV nominal at 1 kHz, 5 cm/sec LINE 250 mV nominal at 1 kHz, 5 cm/sec

Phono Pre-Amp Gain 36 dB nominal, RIAA equalized MC: 56dB nominal, RIAA equalized

USB Function A/D, - 16 bit 44.1 kHz or 48 kHz USB selectable; Computer interface - USB 2.0 compliant Windows 7 or above, MAC OS X or above

Power Supply Requirements 100-240V AC, 50/60 Hz

Dimensions 450.0 mm (17.72") W x 352.0 mm (13.86")D x 157.0 mm (6.18")H

Weight 7.3 kg (16.1 lbs.)

Accessories Included:

AT-VM95E Dual Moving Magnet stereo cartridge (black) with replaceable stylus; AT-HS6 lightweight headshell; AC adapter ; dual RCA (male) to dual RCA (male) stereo cable; 45 RPM adapter; USB cable; dust cover with hinges.




*Product description, details and specification subject to change. Please check the manufacturer's website for the most recent information. Errors and omissions excepted.
