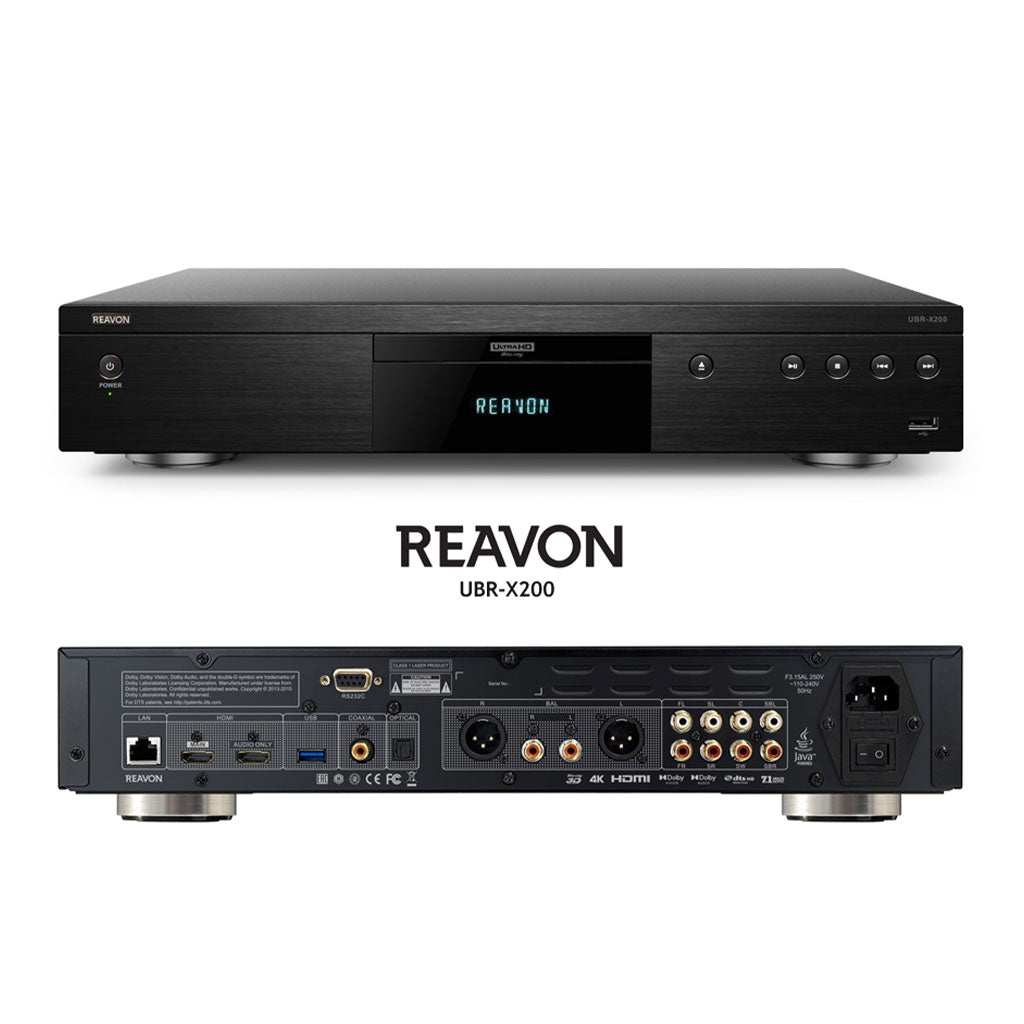

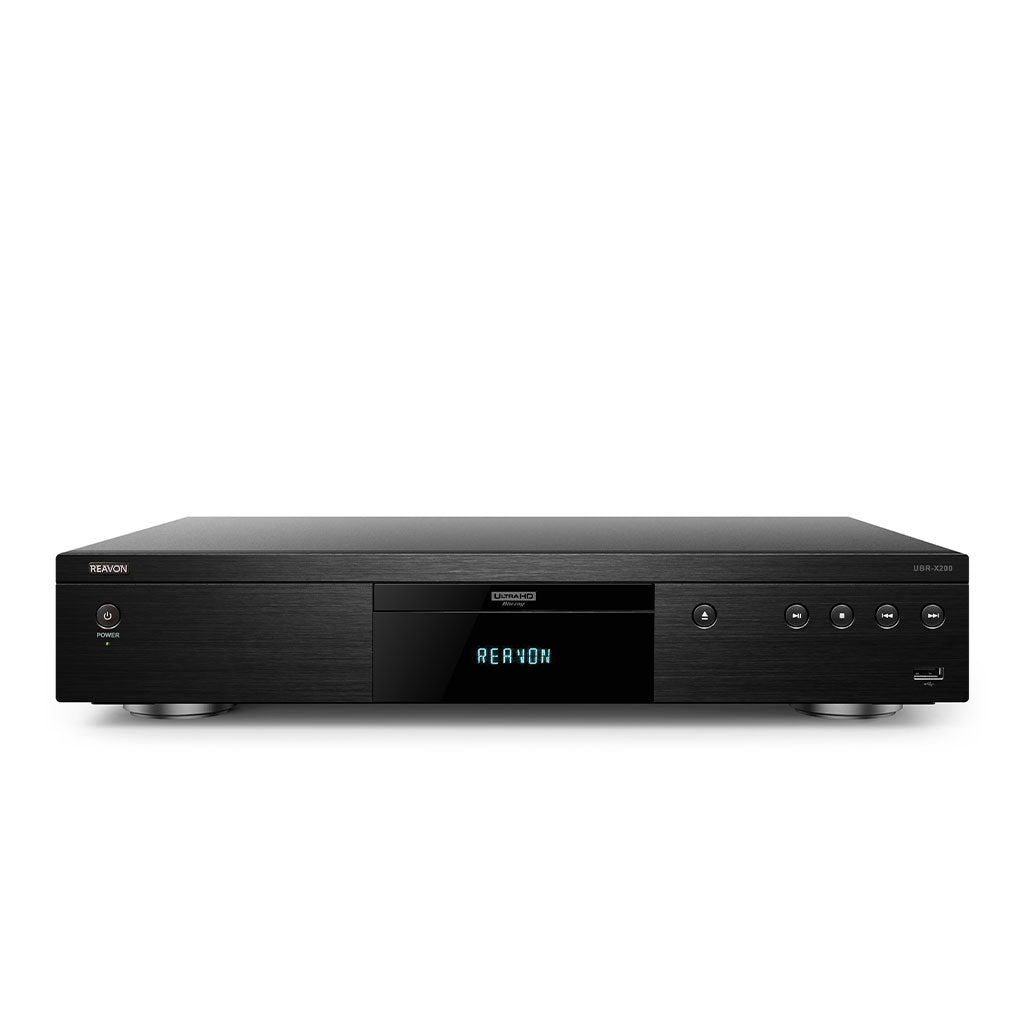

Reavon UBR-X200 4K Ultra HD Blu-ray Player

Reavon UBR-X200 4K Ultra HD Blu-ray Player

REAVON UBR-X200

This flagship universal disc player has been elaborately engineered for the ideal disc playback. The UBR-X200 features extremely rigid construction to achieve high S/N ratio for quality audio and video performance. With support for the spectacular Ultra HD Blu-ray™ format, you can enjoy the beautiful experience with four times the resolution of 1080p Full HD. The UBR-X200 is compatible with the latest Dolby Vision® format that provides a stunning HDR imaging technology with extraordinary color, contrast, and brightness to the screen. Texas Instruments Burr-Brown Audio PCM1690 Series DACs are used to provide audiophile sound. Other features include SDR/HDR Preset Mode, Direct/Transport Function, SACD / DSD compatibility, multi channel audio analog capability and XLR balanced output terminal.

ULTRA-RIGID CONSTRUCTION WITH STEEL PLATE BOTTOM PANEL

The 1.6 mm-thick chassis base is reinforced with a 3 mm-thick steel plate Rigid Under Base to minimise the mechanical motion sound from the BD drive. The result is significantly low noise and even more rigid and stable chassis structure.

ON-SCREEN DISPLAY

You can display the disc information on your screen by pressing and holding the remote control’s INFO button. In addition to the playing disc’s details, you can easily check mastering information such as MaxFALL (Maximum Frame Average Light Level) and MaxCLL (Maximum Content Light Level) available on some HDR content, as well as HDR and HDMI output information

TOROIDAL TRANSFORMER

The UBR-X200 is powered by a toroidal transformer which features low noise and low electromagnetic interference. This is thanks mainly in part to its shape and symmetry. The amount of magnetic flux that escapes outside the core is low and contained within the donut shape. The result is lower audio distortion and degradation to the sound quality, therefore ensuring that the resulting sound is clean and accurate.

UNIVERSAL PLAYER

As a universal disc player, the UBR-X200 can play various optical discs including the latest disc format Ultra HD Blu-ray which has four times the resolution of 1080p Full HD, as well as Blu-ray, Blu-ray 3D, DVD, DVD Audio, CD, SACD, and music, video and audio files such as FLAC, AIFF, DFF, DSF, JPG, TIFF, MKV and M2TS. The UBR-X200 can also play your audio and video contents from an external drive via USB or DLNA.

Main features

Universal Disc Player - Ultra HD Blu-ray, Blu-ray, Blu-ray 3D, DVD, DVD Audio, SACD, CD
BD-Live/BONUSVIEW
HDR10
Dolby Vision
36-bit Deep Colour/”x.v.Colour”
Dual HDMI Output
Video Adjust
Backlite Remote Control
DLNA
Fast boot
Multimedia playback (MKV, FLAC, DSD, AIFF, JPG)

Video features

4K Scaling - Enhance the home cinema experience by quadrupling Full HD 1080p resolution with 4K (3840 x 2160) scaling of all video sources.

True 24p Cinema - Many Blu-ray and 4K Ultra HD Blu-ray discs are encoded at 24 frames per second, the same frequency as the original film screened in theaters. The UBR-X200 maintains the original 24-fps rate straight through to the screen with progressive scanning.

Dolby Vision® - This stunning HDR imaging technology brings extraordinary color, contrast, and brightness to the screen.

Video Adjust - Set the brightness, contrast, color saturation, hue, sharpness and noise reduction.

Audio features

Texas Instruments Burr-Brown Audio PCM1690 DACs
Large-Capacity PCB Toroidal Transformer (Military Engineering Class)
Custom Audiophile Capacitors
Direct Function for Pure Analogue Audio Output
Dual HDMI Output for Pure Digital Audio Output
Jitter-less Clock
Ultra-Rigid Construction
3 mm Steel Plate Rigid Under Base for Low Noise and Low Centre of Gravity
High Quality Main Circuit Board for High S/N Ratio
Rigid Optical Drive
24-Bit Delta-Sigma DAC
8-Channel DAC:
High Performance: Differential, fS = 48 kHz
THD+N: –94 dB
SNR: 113 dB
Dynamic Range: 113 dB
Sampling Rate: 8 kHz to 192 kHz
System Clock: 128 fS, 192 fS, 256 fS, 384 fS, 512 fS, 768 fS, 1152 fS
Differential Voltage Output: 8 VPP
Analog Lowpass Filter Included
4x/8x Oversampling Digital Filter:
Passband Ripple: ±0.0018 dB​
Stop Band Attenuation: –75 dB
Zero Flag​
Data Length: 16, 20, 24, 32 Bits
Analog Mute by Clock Halt Detection
Music File Playback: FLAC (2.0/5.1), M4A, AIF, AIFF, DSF (2.0/5.1), DFF (2.0/5.1), MP3, OGG, APE
Home Theater Audio: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS, DTS-HD MA, DTS-HD HRA, DTS:X

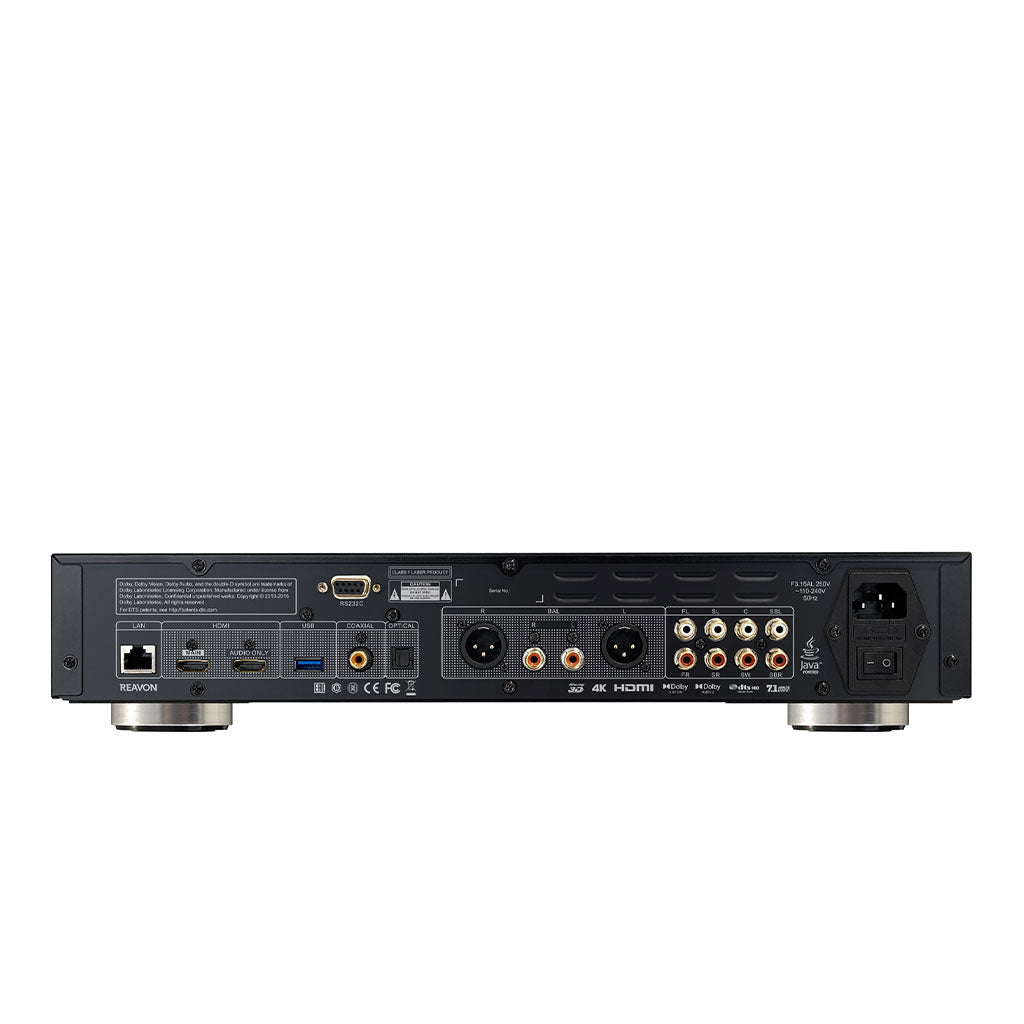

Terminals

HDMI 1 Out for Audio/Video
HDMI 2 for Audio Only
Digital Coaxial Out
Digital Optical Ou
USB In (1 USB 2.0 Front, 1 USB 3.0 Rear)
Ethernet
RS-232C
Analogue Audio Out Stereo (RCA Unbalanced, XLR Balanced)
Analogue Audio Out 7.1/5.1

Technical Specifications

Mediatek MTK8581 SoC
Quad-core ARM Cortex-A53 CPU cluster
ARM Mali-T860 MP2 GPU

General Specifications

Power: AC 220-240 V, 50/60 Hz
Power Consumption: 42 W
Power Consumption During Standby: 0.45 W
Dimensions (W x H x D): 430 x 82 x 351 mm
Weight: 6.8 Kg / 15 lbs
