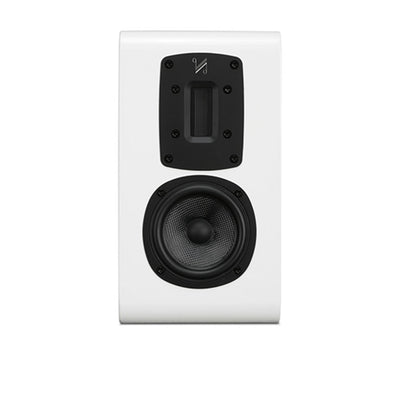

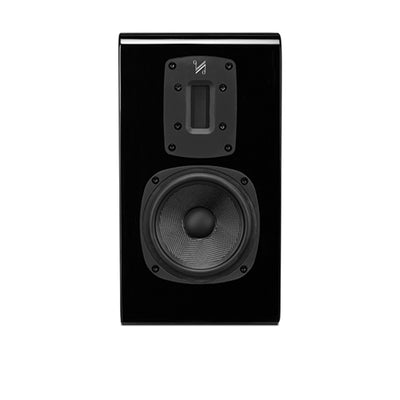

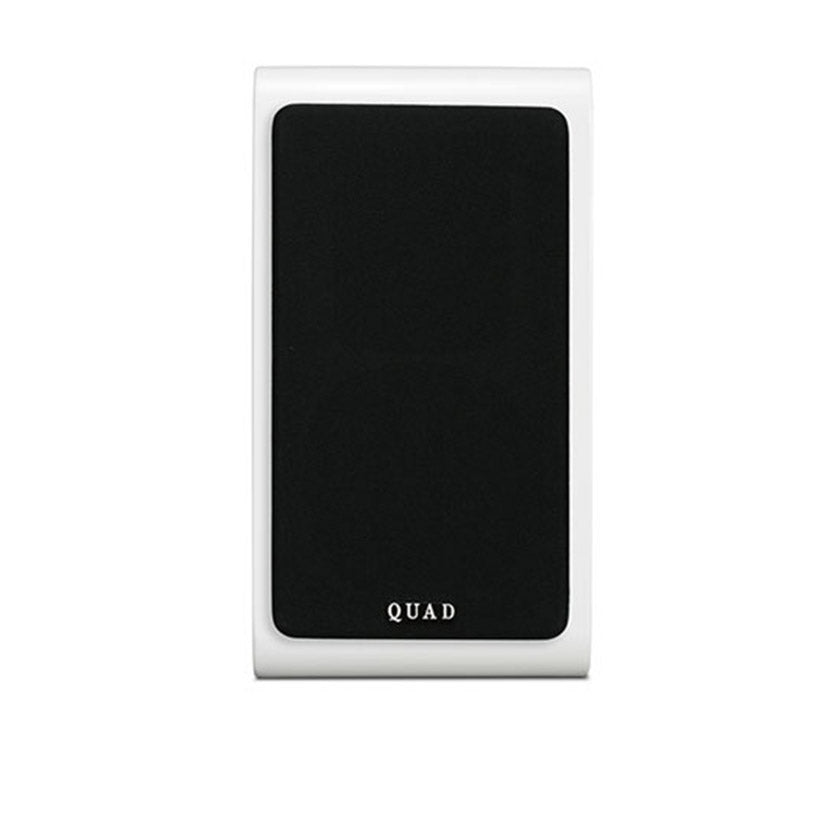

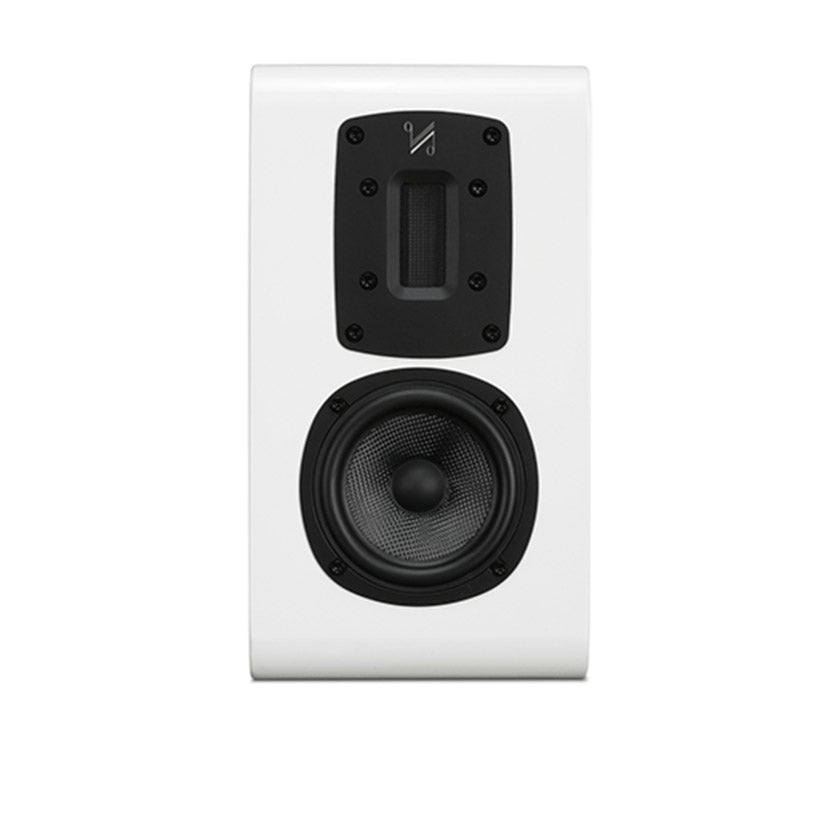

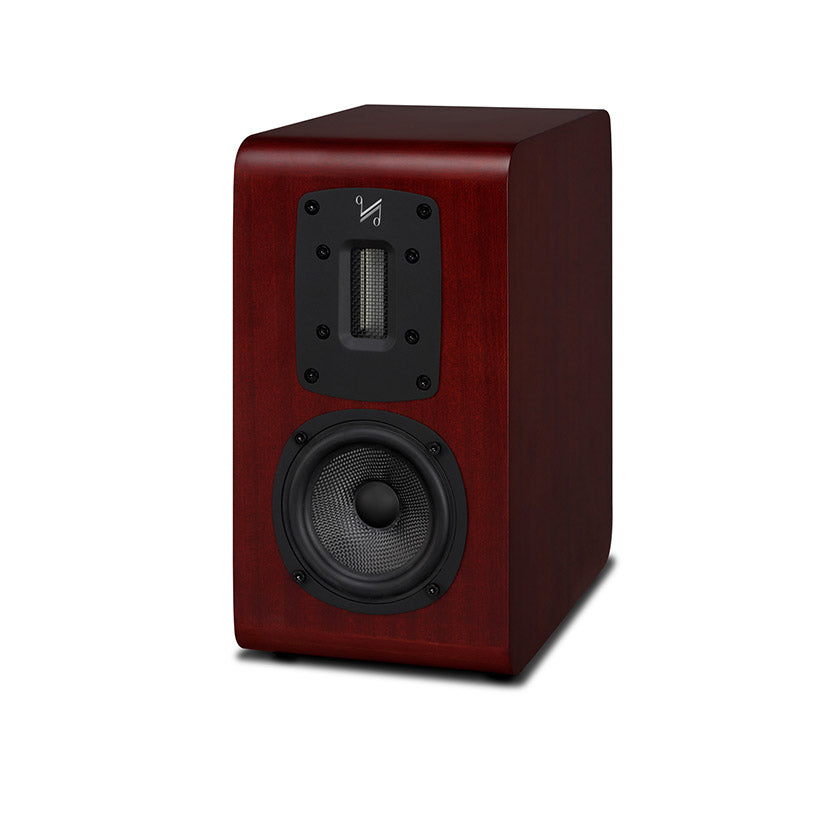

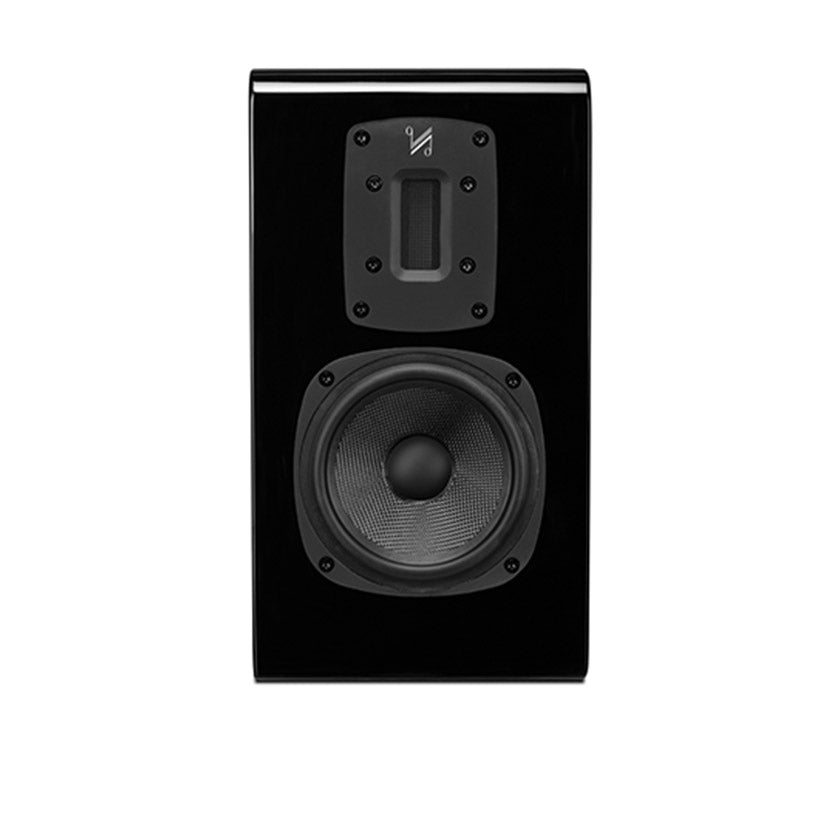

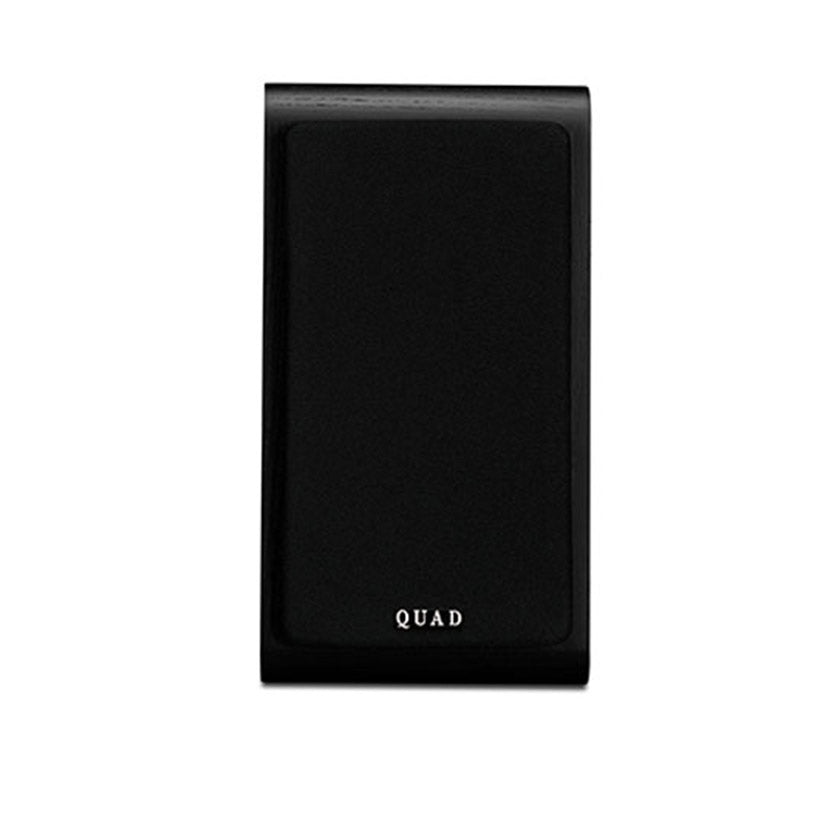

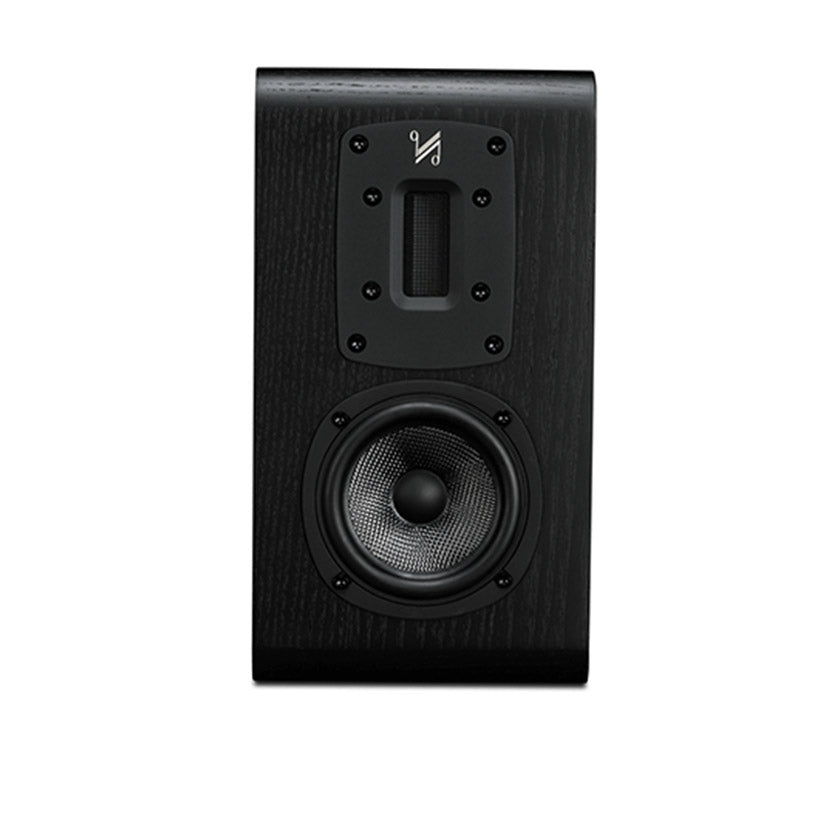

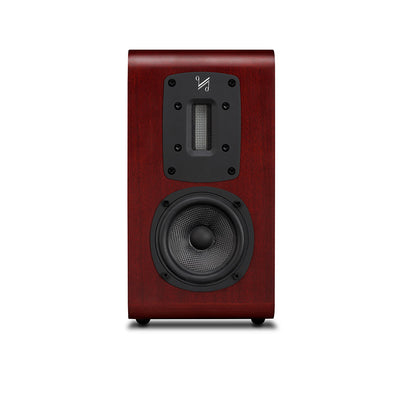

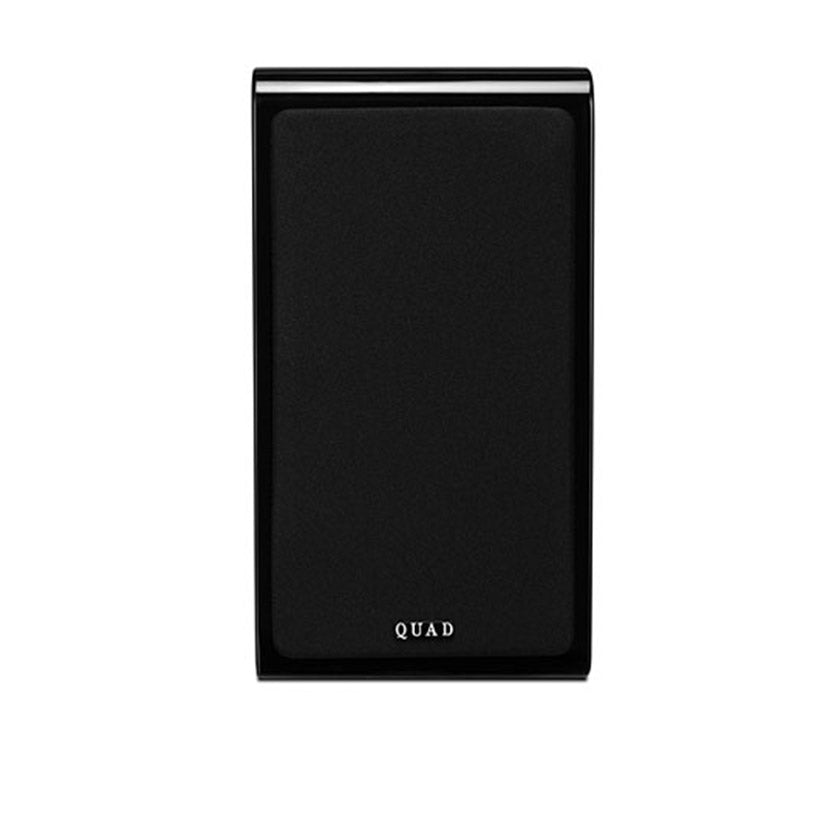

Quad S-1 Ribbon Bookshelf Speaker

Quad has always prided itself as providing the complete solution to music lovers. Each Quad component marries perfectly to other parts of the hi-fi system and is designed with one target – to be ‘The Closest Approach To The Original Sound’.

Quad S Series loudspeakers fulfil that objective admirably. Sporting a new ribbon treble unit aligned, through sophisticated crossover networks, to Quad’s advanced bass-midrange drivers, each and every loudspeaker in the range delivers all the nuances and passion of the original performance.



General description 2-way bookshelf speaker

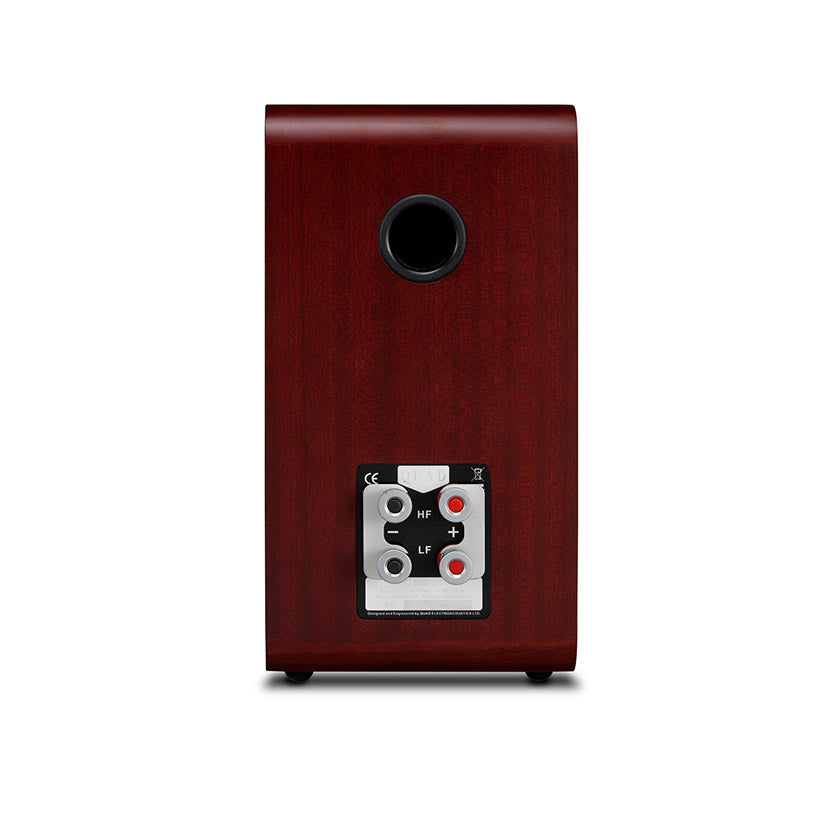

Enclosure type Vented box loudspeaker
Transducer complement 2-way
Bass / Mid driver 4"(100mm)woven Kevlar® cone
Treble driver 45 x 12mm true ribbon
Sensitivity (2.83V @ 1m) 84dB
Recommended amplifier power 25-150W
Nominal impedance 8Ω Compatible
Minimum impedance 4.2Ω
Frequency response (+/-3dB) 58Hz ~ 20kHz
Bass extension (-6dB) 55Hz
Crossover frequency 3.2kHz
Cabinet Volume (in litres) 6.7L
Dimensions (H x W D) 285 x 156 x (240 + 30) mm
Weight 5.2kg

*Product description, details and specification subject to change. Please check the manufacturer's website for the most recent information. Errors and omissions excepted.
