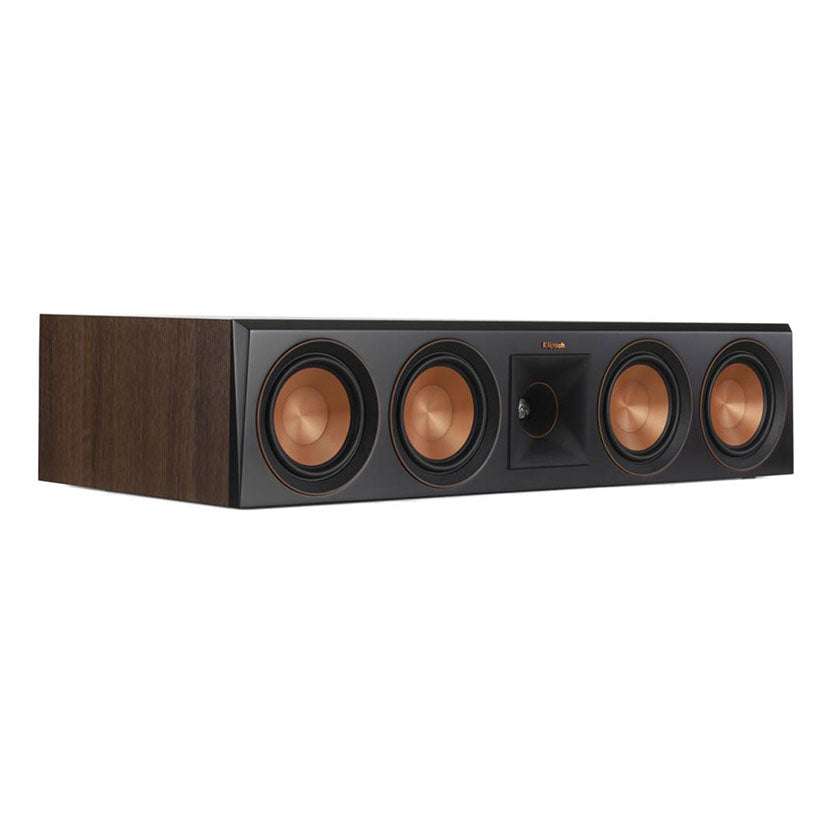

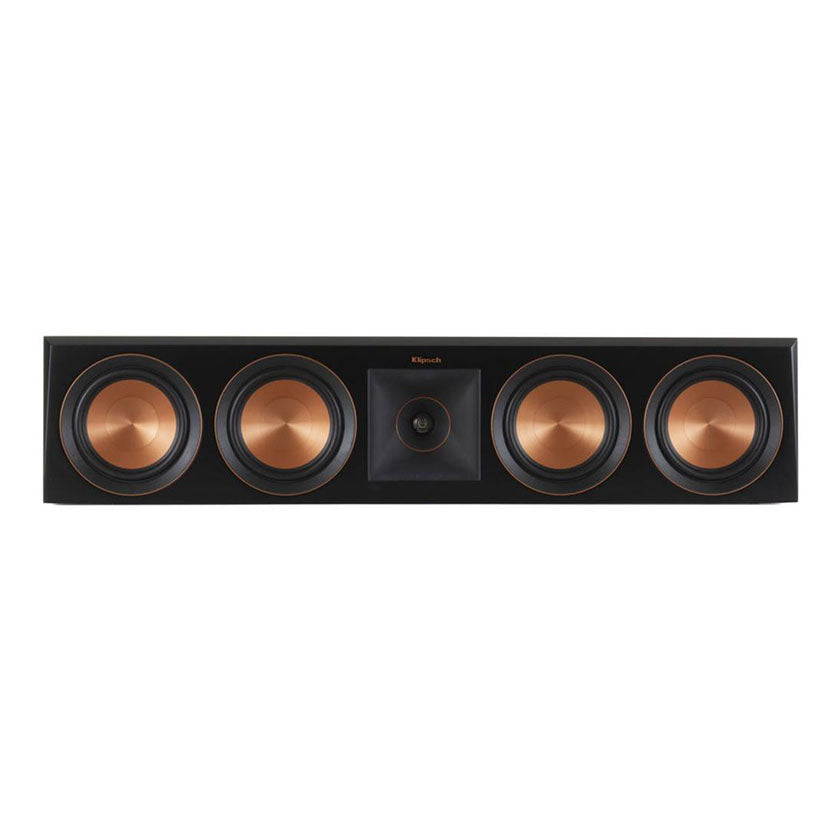

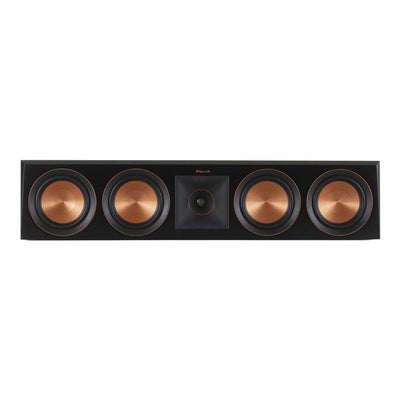

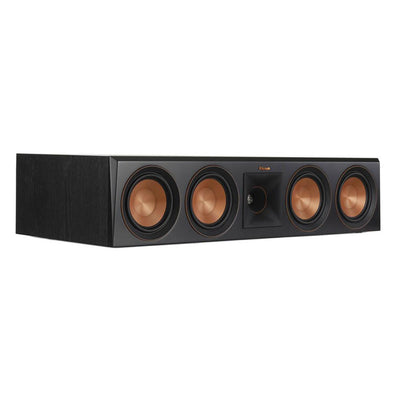

The Klipsch Reference Premiere RP-504C centre channel speaker brings movie dialogue and music lyrics to life. Four 5.25" cerametallic woofers and a hybrid Tractrix horn emit lifelike, front row sound.
90° x 90° SILICON COMPOSITE HYBRID TRACTRIX® HORN
Horn loading maximizes efficiently and increases detail while focusing high frequencies towards the listening area. Proprietary Tractrix® geometry provides the most efficient transfer of high frequency waves into the listening area. The phase plug and compressed molded silicon face ensure smooth frequency response. When combined, the cleanest, most natural sound possible is created.
LINEAR TRAVEL SUSPENSION (LTS) TITANIUM DIAPHRAGM TWEETER
The exclusive Linear Travel Suspension minimizes distortion for enhanced, detailed performance. LTS tweeters are a hallmark of previous Reference lines, making it a core component of some of the best speakers in the world.
VENTED TWEETER DESIGN
The new vented tweeter housing reduces standing waves that create unwanted harmonics, resulting in enhanced detail and clarity in high frequency reproduction.
SPUN COPPER CERAMETALLIC WOOFERS
A signature feature on the Reference Premiere series, Cerametallic™ woofers are exceptionally rigid and lightweight for minimal distortion and maximum efficiency. When paired with the Tractrix horn-loaded LTS tweeter, it provides the highest speaker efficiency in its class.
Utilizing Tractrix geometry, the Reference Premiere ports allow for the most efficient, fastest air transfer from the cabinet, which reduces port noise for punchier low frequencies. Klipsch Tractrix ports have custom designed inner flares that help reduce air turbulence entering the port. Less turbulent air helps reduce port noise for cleaner, more powerful bass.

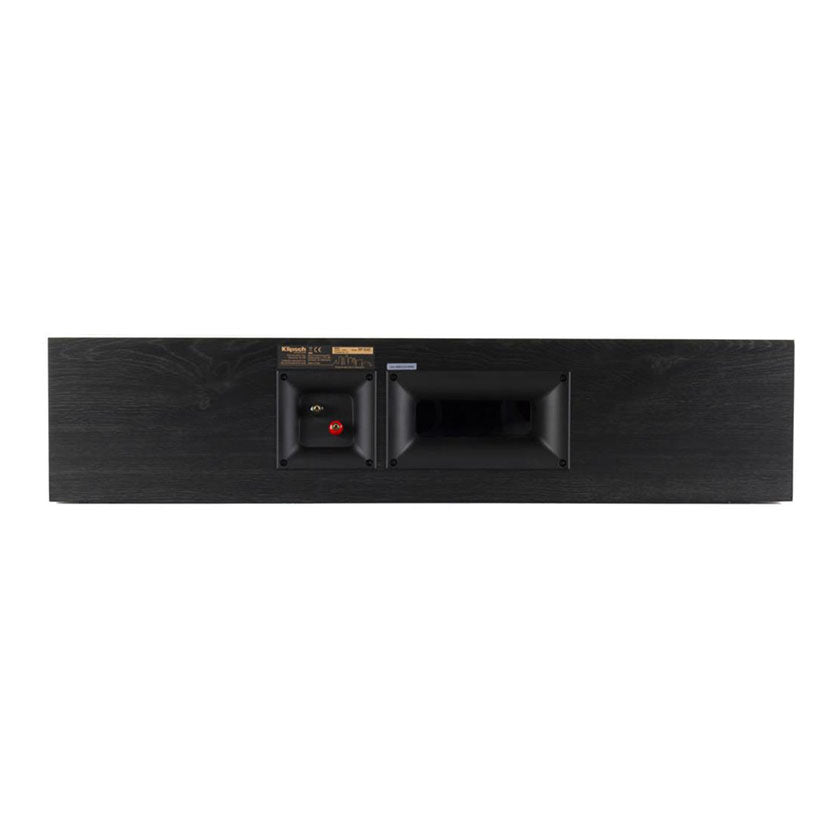

ROBUST INPUT TERMINALS
Single 5-way screw terminals accept banana plugs or bare wire up to 12-gauge for flexible, lasting connections while the vibrant colour coding provides easy set-up and connection.

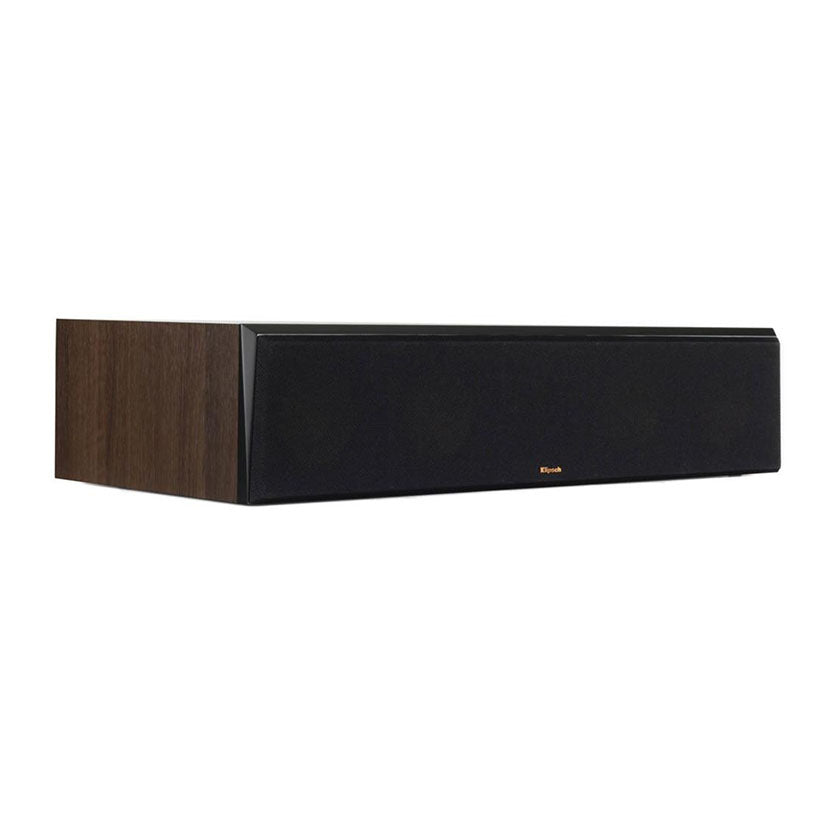

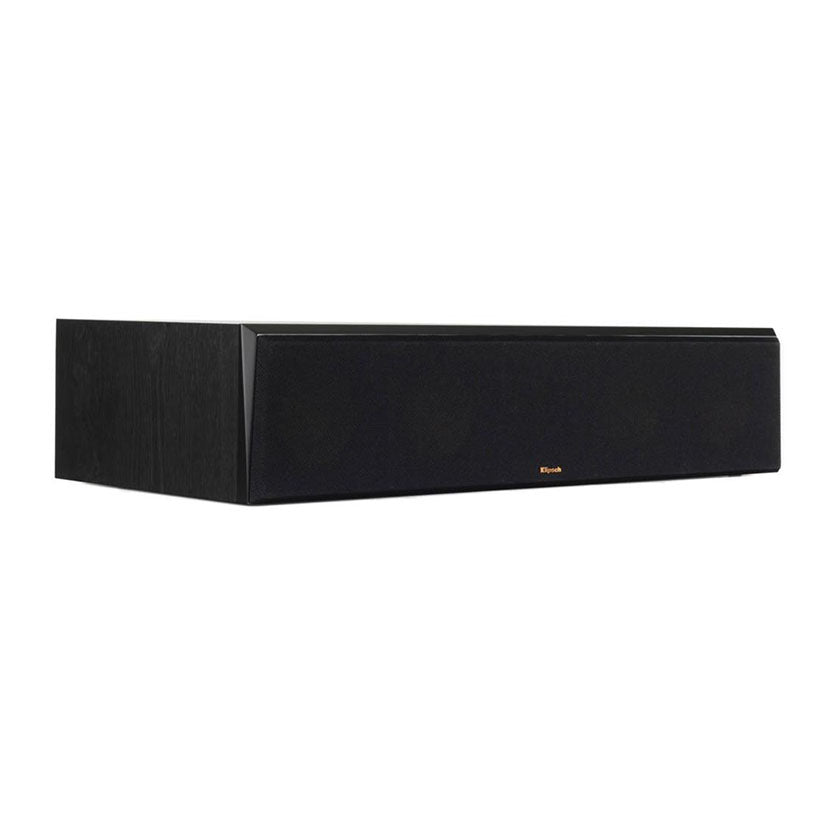

STRONG, FLEXIBLE, REMOVABLE GRILLE
Attaches magnetically for an elegant transition from powerful showstopper to discrete performance piece.
Copper anodized trim rings, cast aluminium feet, satin painted baffles and a laser etched logo treatment give the Reference Premiere II series a modern, premium look.
1" Titanium LTS Vented Tweeter with Hybrid Tractrix® Horn
Quad 5.35" Spun Copper Cerametallic Woofers
Bass-Reflex via Rear-Firing Tractrix® port
Premium Scratch Resistant Ebony and Walnut Finishes
Strong, Flexible Removable Magnetic Grille
Frequency Response: 58 - 25kHz +/- 3dB
Sensitivity: 97dB @ 2.83V/1M
Power Handling (Cont/Peak): 150W/600W
Nominal Impedance: 8Ω
High Frequency Driver: 1” Aluminium LTS vented tweeter with hybrid cross-section tractrix horn
Low Frequency Driver: Quad 5.25" cerametallic cone woofers
Enclosure Material: MDF
Enclosure Type: Bass-Reflex via rear-firing Tractrix® port
Inputs: Single Binding Posts
RP-504C Dimensions (H x W x D): 17.3 x 79.1 x 36.7cm
Finishes: Ebony, Walnut
Included Accessories: Rubber feet (4)
*Product description, details and specification subject to change. Please check the manufacturer's website for the most recent information. Errors and omissions excepted.
