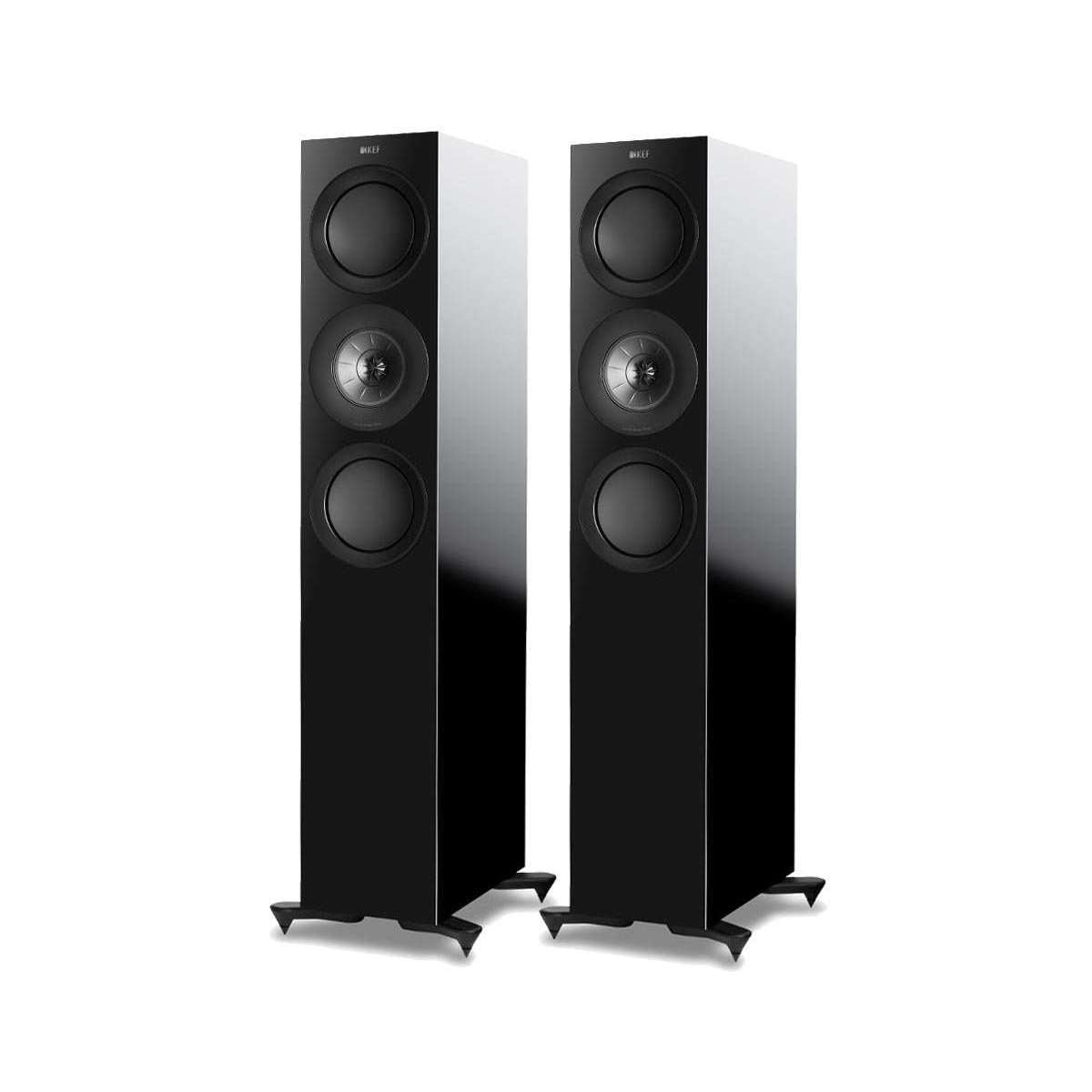

The R7 is the midsized floorstanding member of the new R Series. Featuring two 165mm (6.5 in.) hybrid aluminium bass drivers and a Uni-Q combining a 125mm (5 in.) midrange driver and 25mm (1 in.) aluminium dome tweeter, R7 outperforms all expectations. Equally at home with music and film, R7 proves to be just as flexible as the rest of the R Series range.
MODEL R7
DESIGN Three-way bass reflex
DRIVE UNITS Uni-Q Driver Array:
HF: 25mm (1in.) vented aluminium dome
MF: 125mm (5in.) aluminium cone
Bass Driver:
LF: 2 x 165mm (6.5in.) hybrid aluminium
CROSSOVER FREQUENCIES 400Hz, 2.9kHz
FREQUENCY RANGE 33Hz-50kHz (-6dB)
TYPICAL IN-ROOM BASS RESPONSE 27Hz (-6dB)
FREQUENCY RESPONSE 48Hz-28kHz (±3dB)
HARMONIC DISTORTION <0.3% 120Hz-20kHz (90dB, 1m)
MAXIMUM OUTPUT 111dB
AMPLIFIER POWER 15-250W (recommended)
NOMINAL IMPEDANCE 8Ohms (min.3.2Ohms)
SENSITIVITY 88dB (2.83V/1m)
WEIGHT* 31.4 kg (69.2 lbs.)
DIMENSION (H X W X D) 1062 x 200 x 383.5 mm (41.8 x 7.9 x 15.1 in.) with terminal*
DIMENSION (H X W X D) 1108.9 x 310.6 x 383.5 mm (43.7 x 12.2 x 15.1 in.) with terminal with Plinth*
DIMENSION (H X W X D) 1062 x 200 x 360 Cabinet only

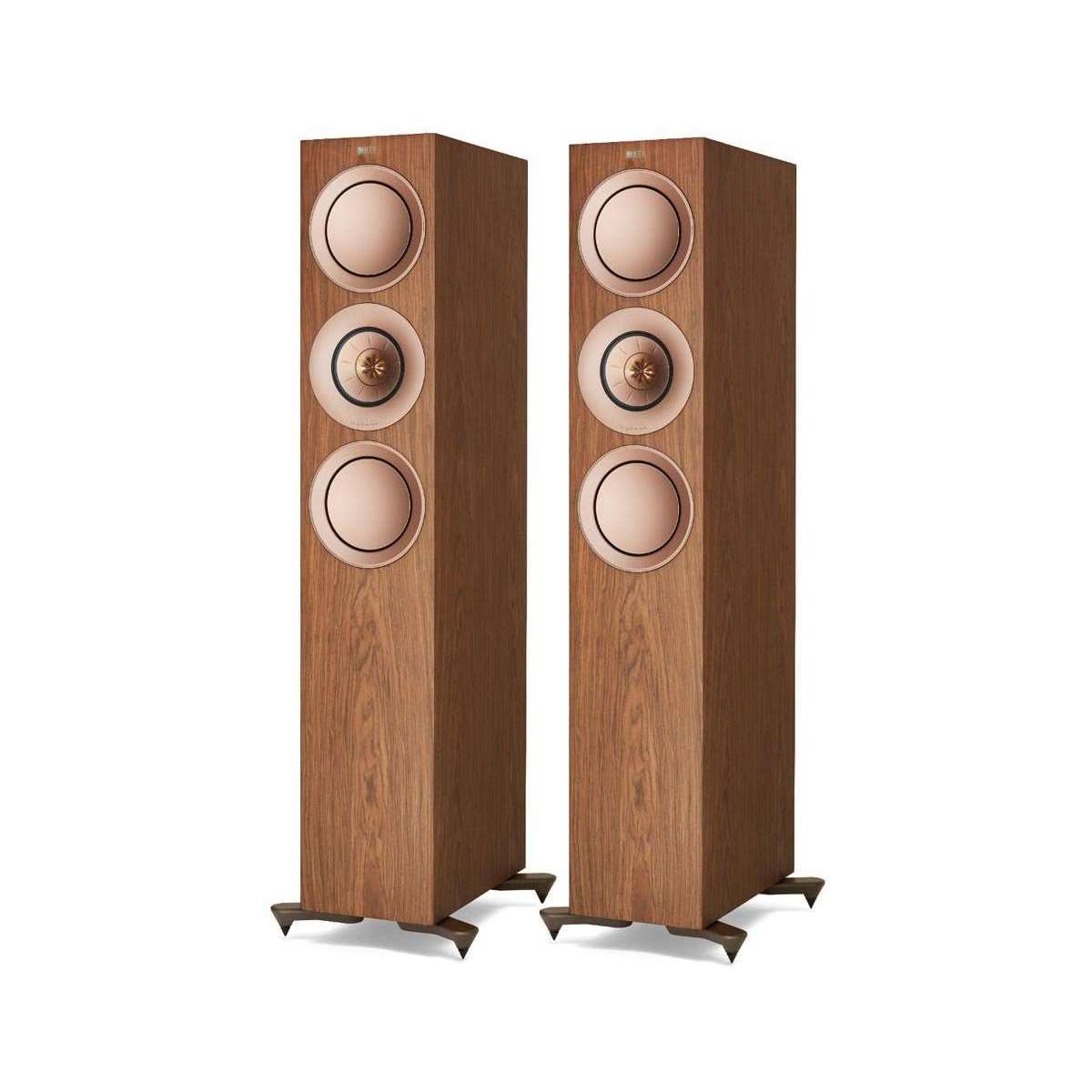

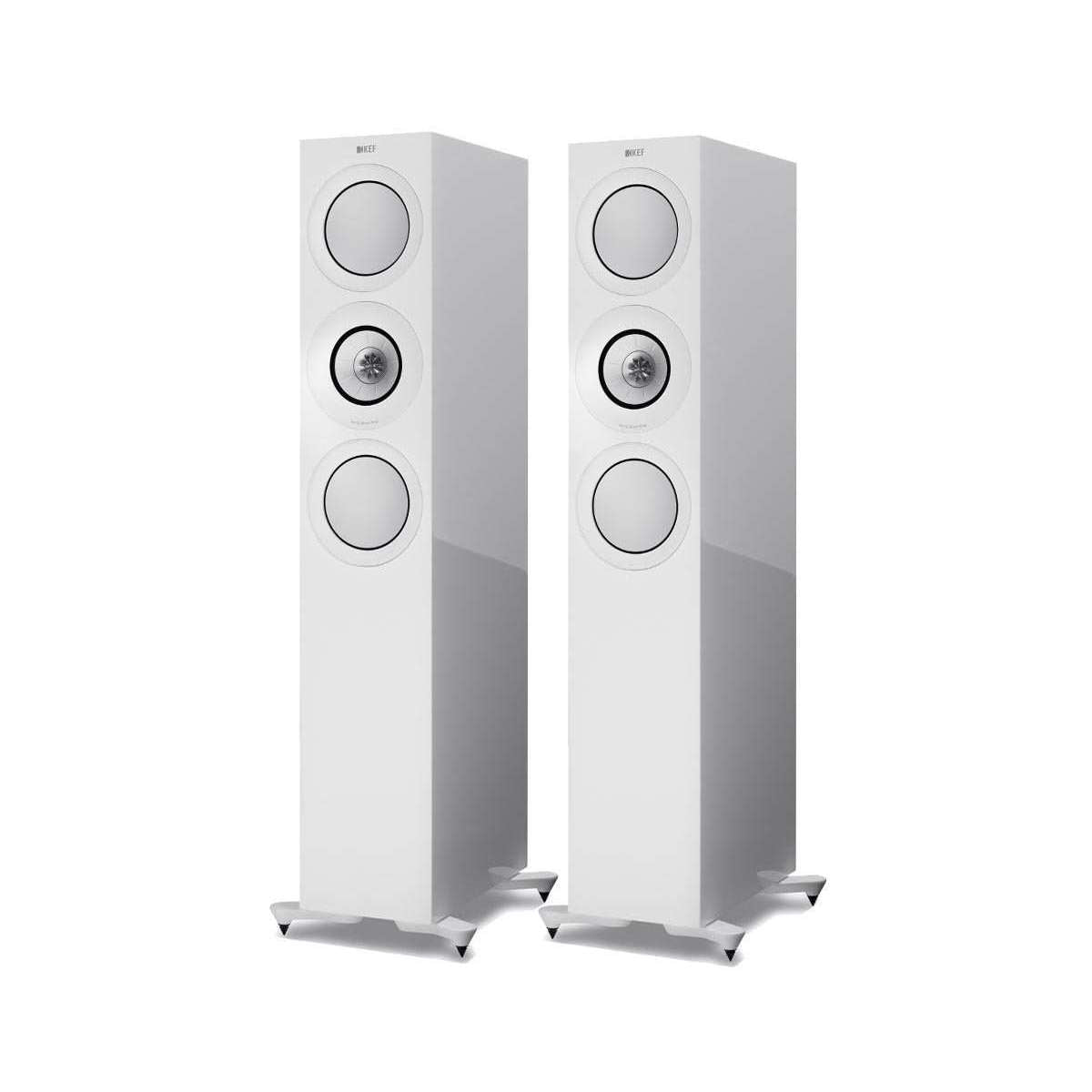

FINISHES Black Gloss / White Gloss / Walnut
