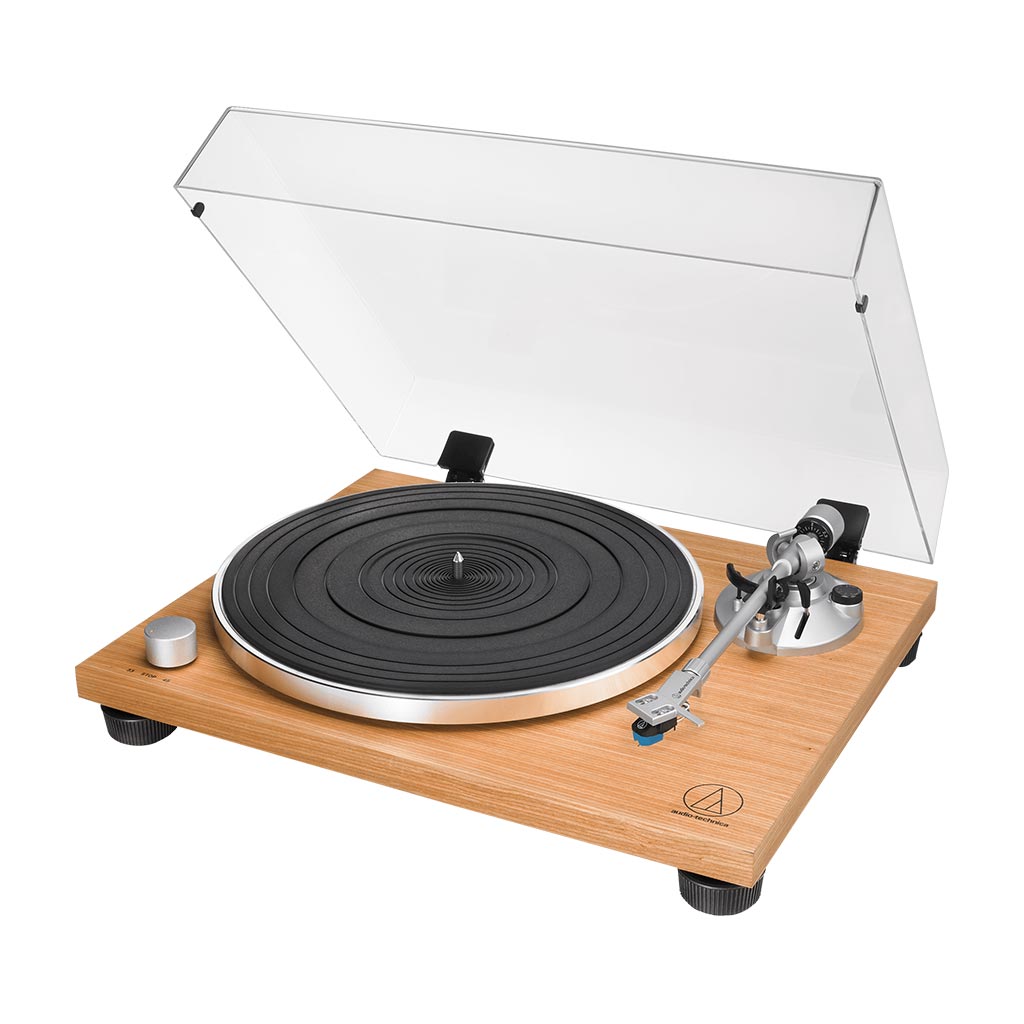

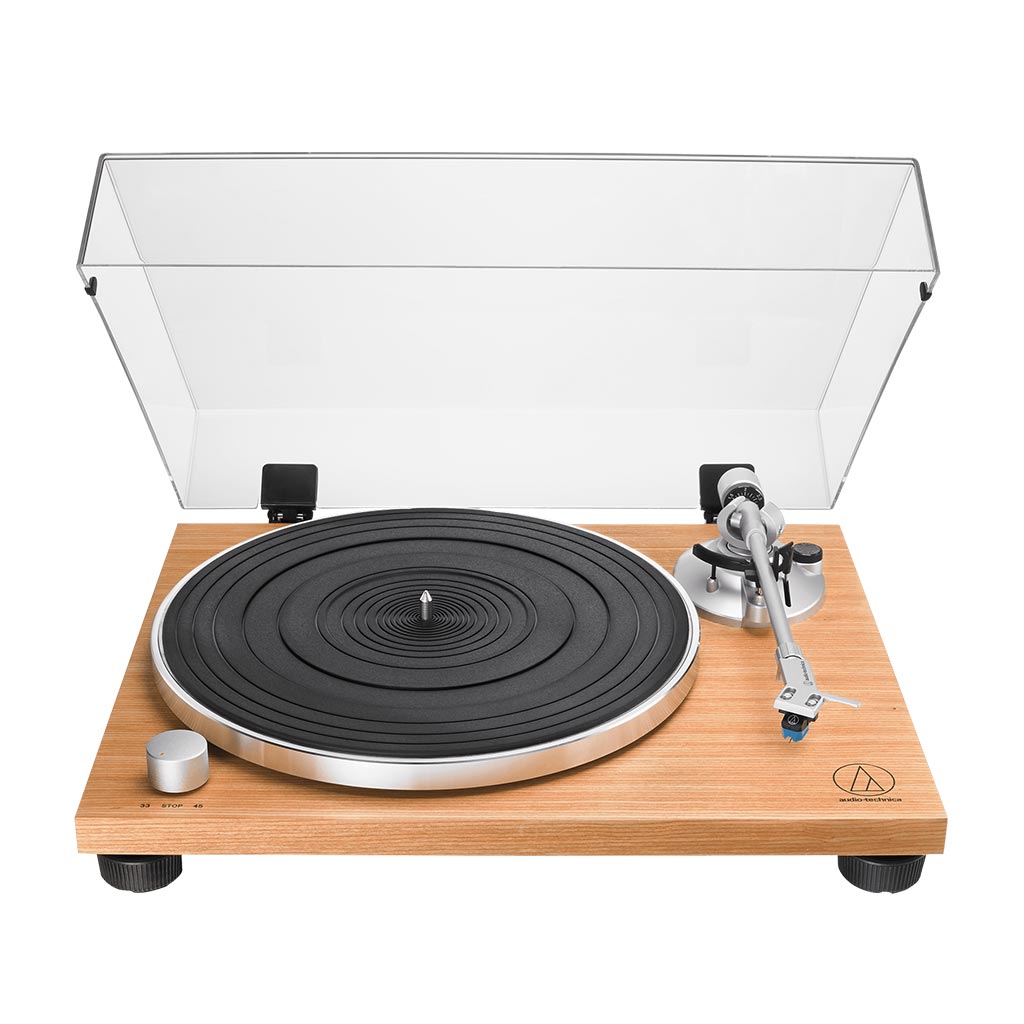

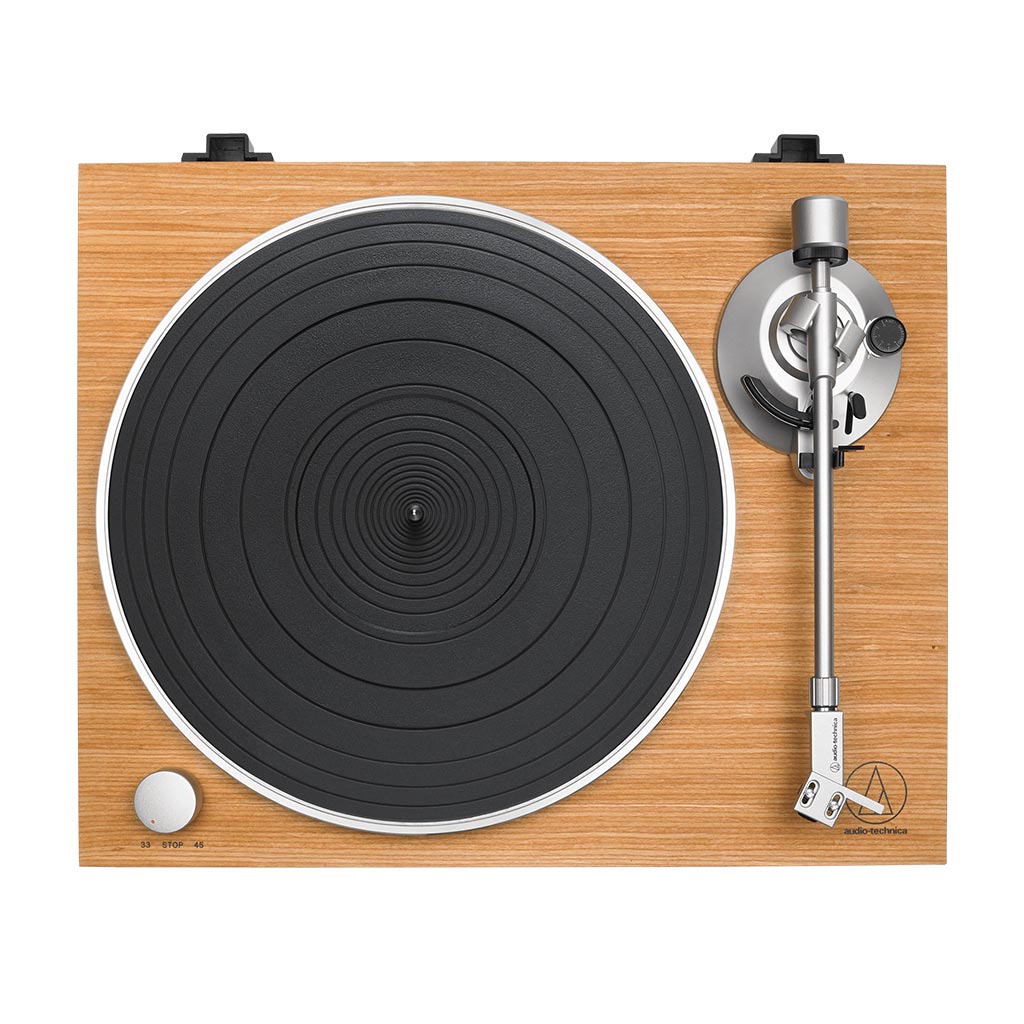

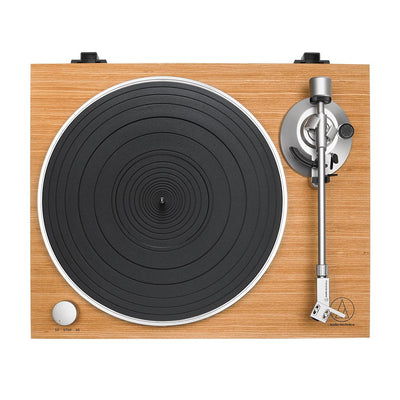

Audio Technica AT-LPW30TK Manual Belt-Drive Turntable

The AT-LPW30TK is a fully manual, belt-drive turntable designed to give you optimal high-fidelity audio reproduction from vinyl. The two-speed (33-1/3 and 45 RPM) turntable features an aesthetically pleasing anti-resonance MDF (medium density fiberboard) plinth with simulated teak veneer to limit low-frequency acoustical feedback.

The turntable includes a straight aluminum tonearm with adjustable tracking force and an AT-HS4 universal ½"-mount headshell with an AT-VM95C Dual Moving Magnet phono cartridge. Audio-Technica has been a leader in phono cartridge design for more than 50 years, and that expertise shows in the versatile, high-performance AT-VM95C cartridge, which comes with a 0.6 mil conical stylus, but is also compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

The AT-LPW30TK is equipped with a built-in selectable phono preamp and a detachable dual RCA output cable to enable direct connection to components with or without a dedicated phono input.

Stylish Wood Turntable

A stunning addition to any system, the AT-LPW30TK features an anti-resonance plinth with simulated teak wood veneer to limit low-frequency acoustic feedback.

Audio Aesthetics

The LPW30TK was designed to give you optimal high-fidelity audio reproduction from vinyl, with sophisticated styling.

Over 55 Years of Analog Excellence

We got our start in Tokyo in 1962, designing and manufacturing high-performance phono cartridges. That half-century’s worth of analog expertise goes into every turntable we produce, ensuring you get the best listening experience from your vinyl.

Features:

Fully manual, belt-drive operation with two speeds: 33-1/3 and 45 RPM

Fully manual operation

Adjustable dynamic anti-skate control

Professional anti-resonance, die-cast aluminum platter with rubber mat

AT-HS4 universal ½"-mount headshell and AT-VM95C Dual Moving Magnet phono cartridge with 0.6 mil conical stylus

AT-VM95C cartridge is compatible with any VM95 Series replacement stylus, offering a wide choice of options for every budget and application

Straight tonearm with hydraulically damped lift control and lockable rest

Anti-resonance MDF (medium density fiberboard) plinth with teak simulated wood veneer

Built-in switchable phono pre-amplifier for phono or line-level output

AC adapter handles AC/DC conversion outside of the chassis, reducing noise in the signal chain

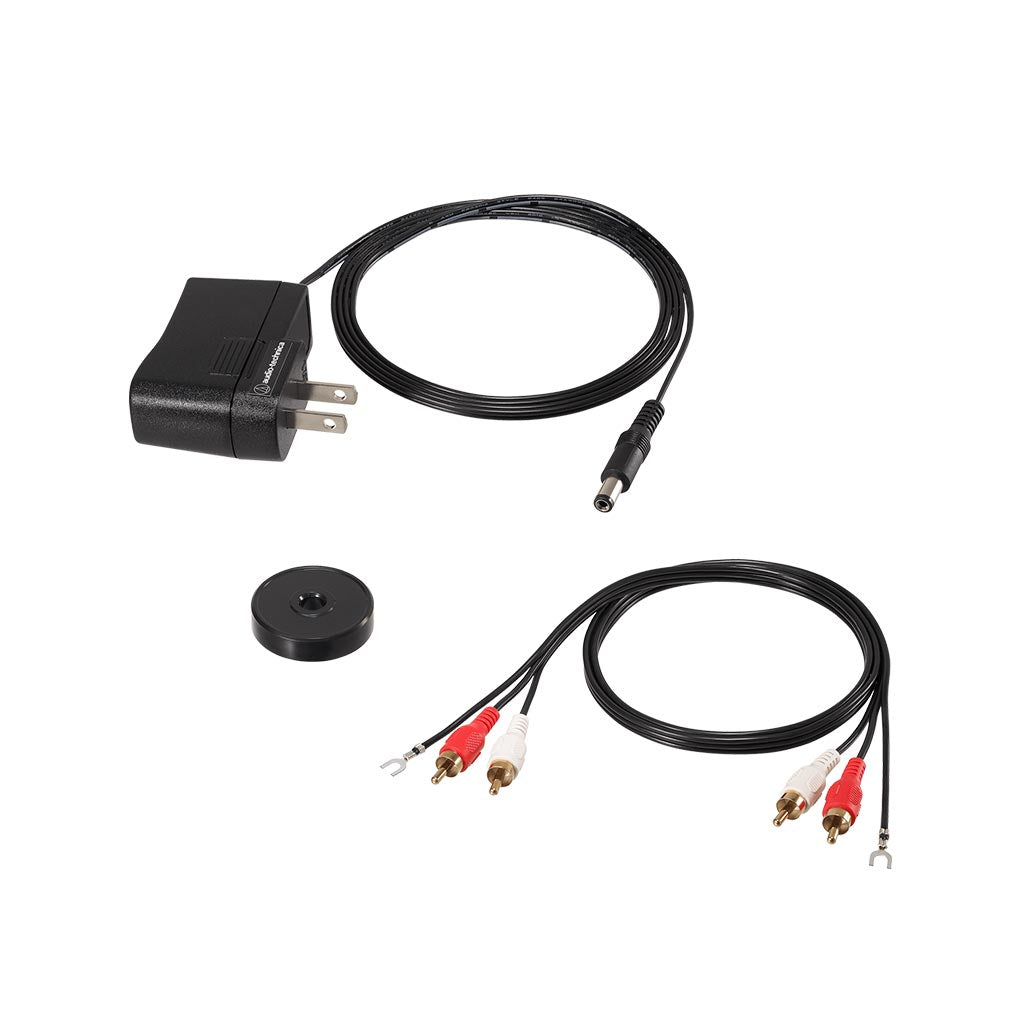

Includes dual RCA (male) to dual RCA (male) stereo cable, 45 RPM adapter, rubber mat, and removable hinged dust cover

Specifications:

Type 2-speed, fully manual operation

Motor DC servo motor

Drive Method Belt-drive

Speeds 331/3 RPM, 45 RPM

Turntable Platter Die-cast aluminum

Wow and Flutter < 0.15% WRMS (33RPM) at 3kHz

Signal-to-Noise Ratio > 60dB

Output Level Pre-amp: PHONO: 4.0mV nominal at 1kHz, 5cm/sec

Pre-amp: LINE: 200mV nominal at 1kHz, 5cm/sec

Power Supply Requirements 100 to 240V, 50/60Hz

Dimensions 116.9 x 420.0 x 340.0 (H x W x Dmm)

Weight 5 kg

Accessories Included AT-HS4SV Headshell

AT-VM95C Dual Moving Magnet Cartridge with Elliptical Stylus

Detachable RCA output cable (dual RCA male to dual RCA male)

AC adapter, 45 RPM adapter, Counterweight, Rubber mat,

Removable hingedlid
